Wabco Pan-19 Hendrickson Type
Stock Code:
80621
Stock Code:
80622
Hamilton
In Stock
Christchurch
Out of Stock
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$1,011.50 Excl. GST
Price:
$1,011.50 Excl. GST

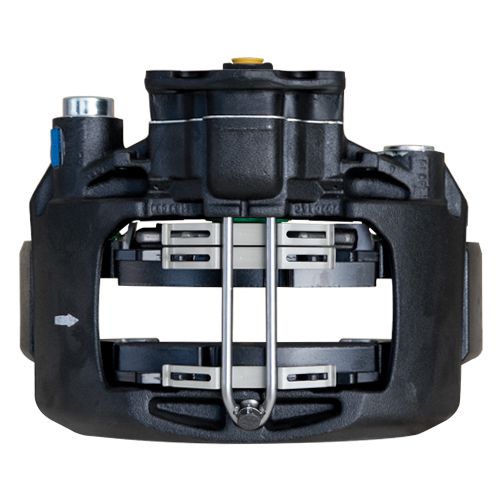

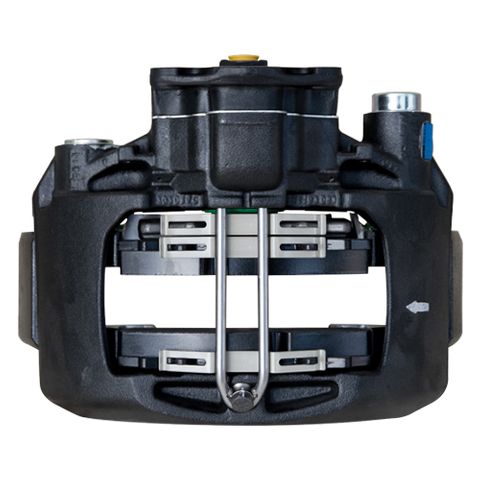

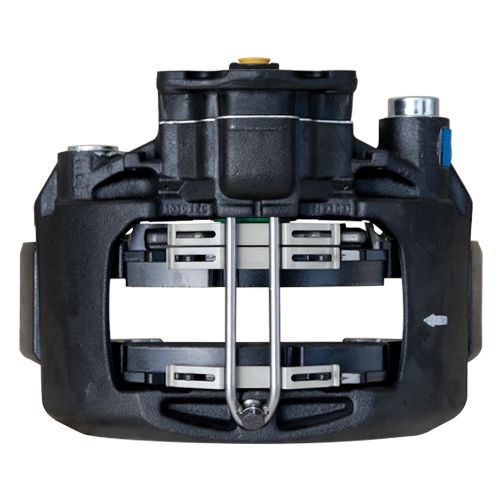

Hendrickson Style Wabco Pan-19 Caliper
Genuine Wabco Core
Brake Performance
Lever stroke : ≥ 57 mm
Maximum actuator input force (FB): 12000N
Mechanical efficiency (η): ≥ 96%
Average ratio (i): i=14.3
Design rated clamping force : 160kN
Effective friction radius (rm) : 0.150 m
Design rated torque (MB with C* = 0.7): 17000Nm
Rotor Dimensions
Rotor thickness, new (d): 45mm
Permissible rotor wear: 4mm per friction surface
Outer diameter of rotor (Da): 375mm
Inner diameter friction surface (Di): 224mm
