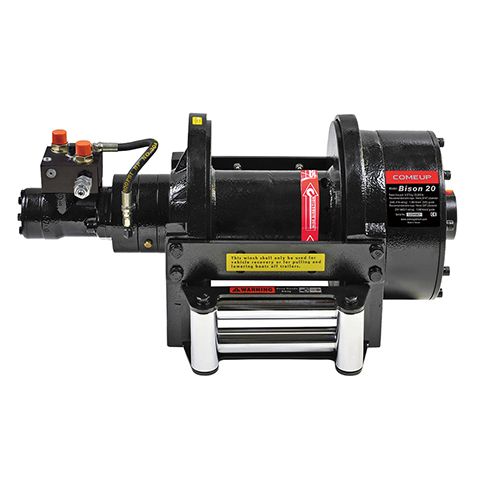

Comeup Bison 20 Short Drum Winch

(0 reviews)
Stock Code:
439065
Hamilton
Out of Stock
Christchurch
Low Stock
Price:
$13,089.75 Excl. GST
Unavailable for Online Purchase
Notify When in Stock
  • The new mechanical MDB (Multi-Disc Brake) and two ways counterbalance valve together to control and hold the load.
  • Built-in air clutch for rapid wire rope payout.
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application.
  • Fast and variable recovery speeds for high working
  • Powerful and constant output hydraulic motor allows extreme duty performance
  • Meets SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches
  • Roller fairlead, cable tensioner and two ways counterbalance valve come as standard accessories.
  • Part number: PN 682030 (Std. drum)  / PN 682169 (Long drum)
  • Rated line pull: 9,070 kg / 20,000 lb (SAE J706 & EN 14492-1 rating)
  • Line speed (at 1st layer of rope) : 7.1 mpm at 60 l/min (23 fpm at 15.9 g/min)
  • Operation pressure: 175 bar / 2,540 psi
  • Max oil flow: 60 l/min (15.9 g/min)
  • Hydraulic motor: 155.7 cm3/rev (9.5 in3/rev)
  • Gear ratio: 2-stage planetary gear 30:1
  • Winch construction: Cast housings with steel drum
  • Clutch (Freespooling): Output shaft disengaged
  • Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
  • Rotation of winch: Wire rope shall be under-wound orientation only
  • Drum barrel diameter: 146 mm (5.8")
  • Drum flange diameter: 314 mm (12.4”)
  • Distance between flanges: 203 mm (8") - Std. drum
  • Mounting bolt pattern: 190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
  • Wire rope recommended:
    14 mm x 43 m (9/16” x 141’) - Std. drum
    1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 ratings
    16 mm x 30 m (5/8” x 98’) - Std. drum
    1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for EN 14492-1 ratings
  • Winch weight:
    135 kg / 298 lb - Std. drum
  • Gross weight:
    165 kg / 364 lb - Std drum
  • Box dimension, (L x D x H) :
    870 x 500 x 510 mm (34.3" x 19.7" x 20.1")  - Std. drum
