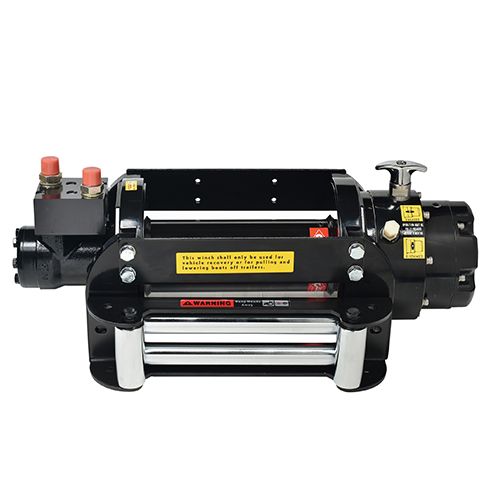

Comeup HV-10 Winch

Stock Code:
439048
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$3,277.50 Excl. GST
  • Powered by a PTO/power take off unit driven pump
  • Fast and variable recovery speeds for high work rate
  • Highly efficient and constant operating torque motor
  • 2 stage planetary gear train for greater pulling force
  • Turn clutch by ergonomic T-handle for rapid wire rope payout
  • Drag brake and over center valve providing complete braking
  • EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery
  • Meets SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches
  • Part number: PN 682546 (Std. drum)  / PN 683129 (Std. drum - Clutch in left side)
  • Rated line pull: 4,535 kg / 10,000 lb (SAE J706 rating)
                                4,300 kg (EN 14492-1 rating)
  • Line speed (at 1st layer of rope) : 14 mpm at 60 l/min (46 fpm at 15.9 g/min)
  • Operation pressure: 150 bar / 2,175 psi
  • Max oil flow: 60 l/min (15.9 g/min)
  • Hydraulic motor: 97.3 cm3/rev (5.9 in3/rev)
  • Gear ratio: 2-stage planetary gear 16:1
  • Winch construction: Aluminum die cast housings with steel drum
  • Clutch (Freespooling): Rotating ring gear
  • Brake: Spring applied drag brake together with over-center valve supplied
  • Rotation of winch: Wire rope shall be under-wound orientation only
  • Drum barrel diameter: 102 mm (4")
  • Drum flange diameter: 201.5 mm (7.9”)
  • Distance between flanges: 253 mm (10")
  • Mounting bolt pattern: 291.6 x 171.2 mm (11.5” x 6.7”)
                                               374.2 x 114 mm (14.7” x 4.5”)
  • Wire rope recommended:
    11 mm x 27 m (7/16" x 89'), 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 84.4 kN (18,939 lbf) required for SAE J706 and EN 14492-1 ratings.
  • Winch weight: 37 kg / 81.4 lb
  • Gross weight: 46.6 kg / 102.5 lb
  • Box dimension, (L x D x H) : 680 x 380 x 300 mm (26.8" x 15" x 11.8")
