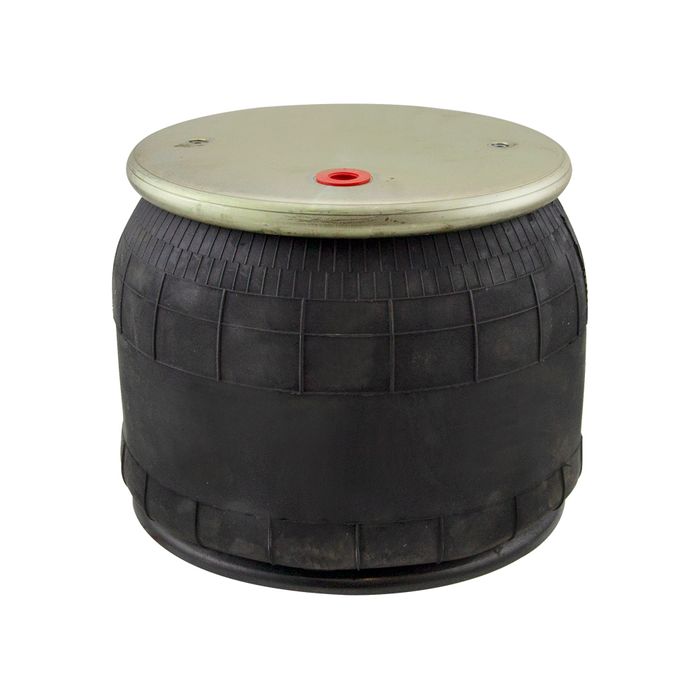

VKNTech Air Bag 1K9069

Stock Code:
730282
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$175.50 Excl. GST

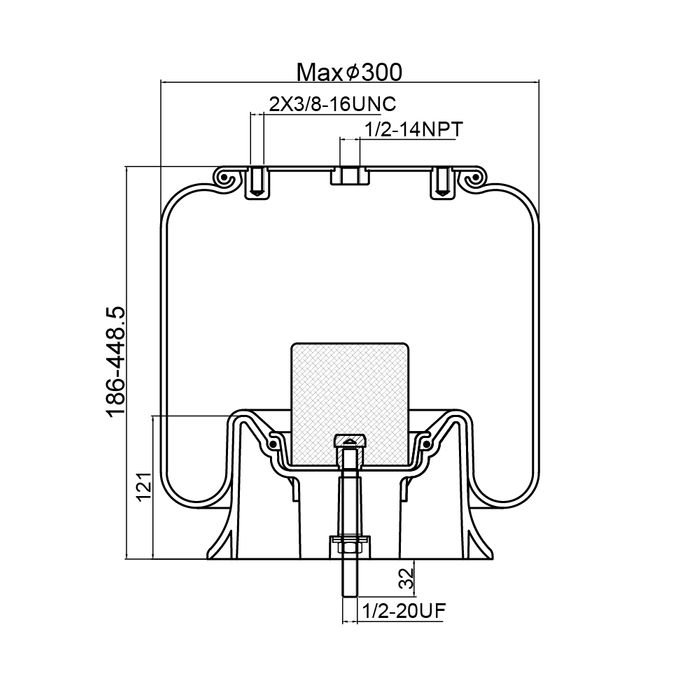

Complete Unit
Outer Diameter: 300mm
Height: 186 - 448.5mm (excl. studs)

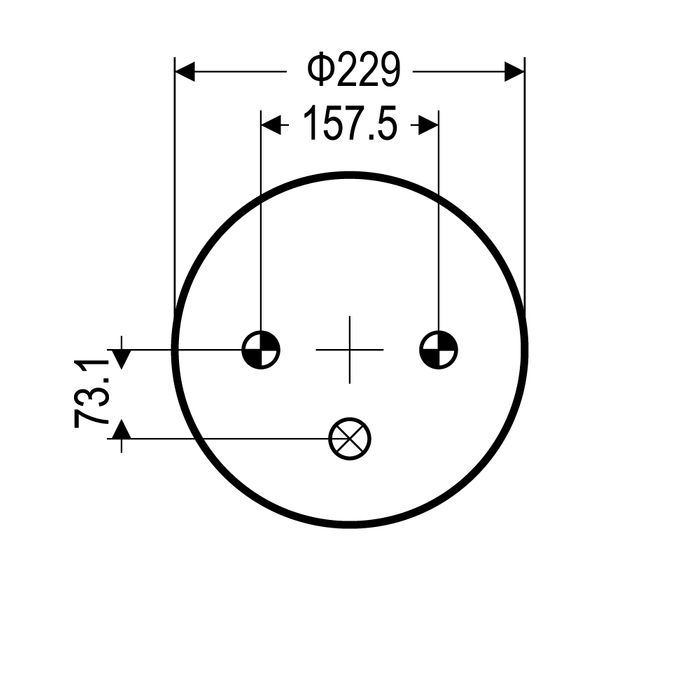

Top Plate
Outer Diameter: 229mm
Mounting: 1x air inlet stud (A), 2x threaded holes (B)
Spacing: See top plate diagram

A. Air Inlet Hole
Thread: 1/2" 14NPT

B. Threaded Hole
Thread: 3/8" 16UNC

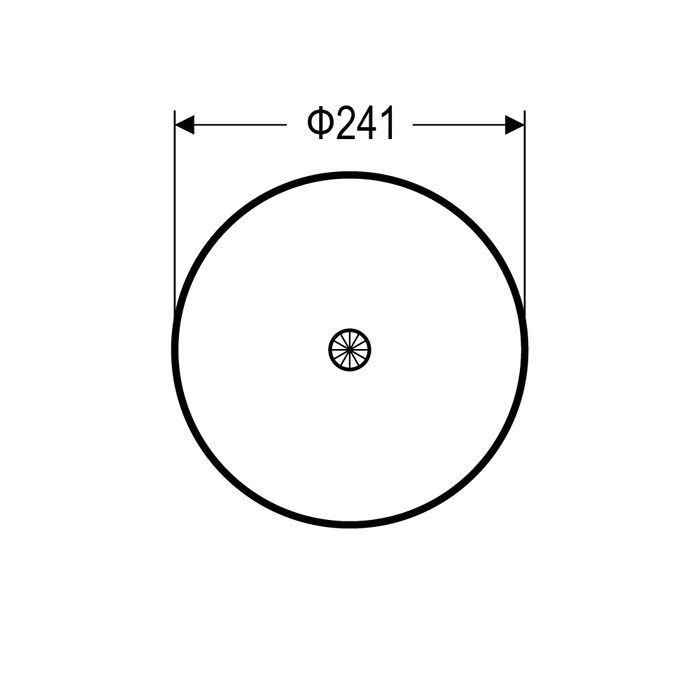

Base
Outer Diameter: 241mm
Height: 121mm
Mounting: 1x stud (C)

C. Stud
Length: 32mm
Thread: 1/2" 20UNF



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9069
    1K15M-4
  • Foden
    1300248000
  • Peterbilt
    03-02456
    03-04759
    03-01649
    03-06746
    03-07112
    03-02038
    03-10042

Reference Numbers

  • Contitech
    4154NP05
    9 10-14 A 312
  • Firestone
    W01-358-9069
    1T15M-4
  • Goodyear
    1R12-069
    1R12-669
  • Taurus
    KR504-9069
