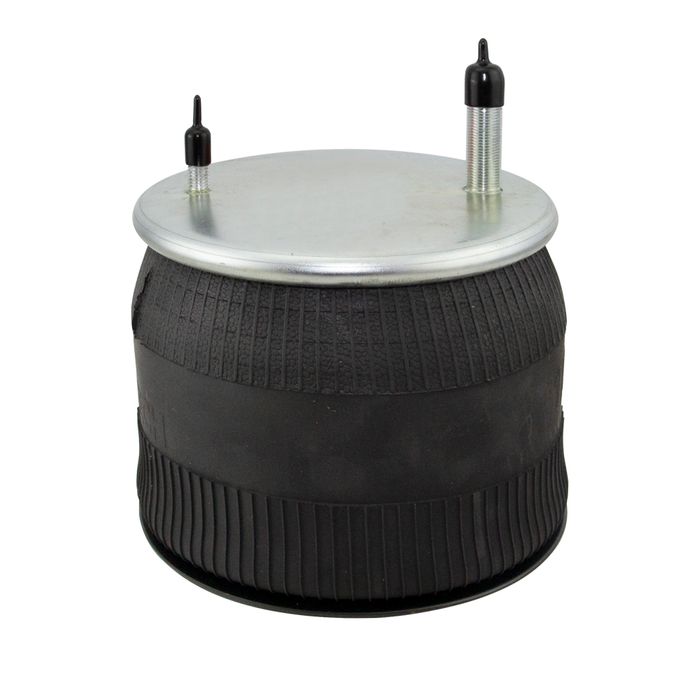

VKNTech Air Bag 1K9422

Stock Code:
730442
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$175.50 Excl. GST

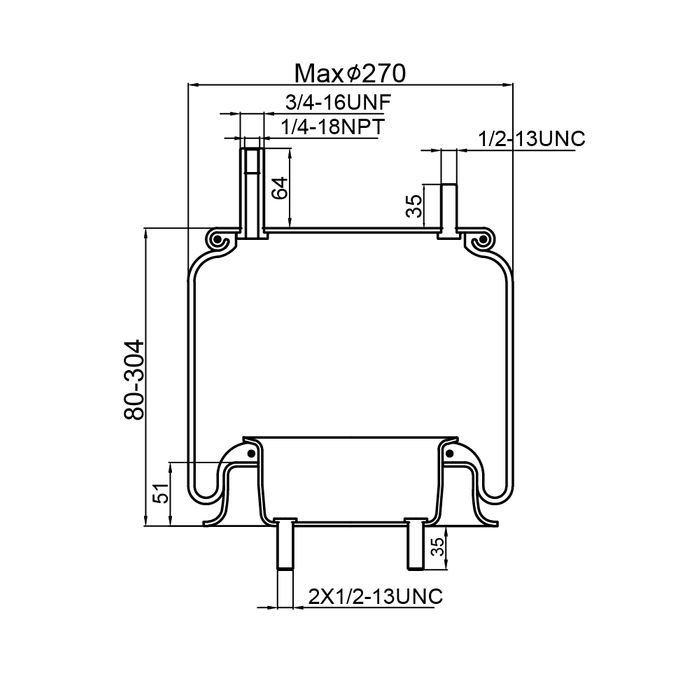

Complete Unit
Outer Diameter: 270mm
Height: 80-304mm (excl. studs)

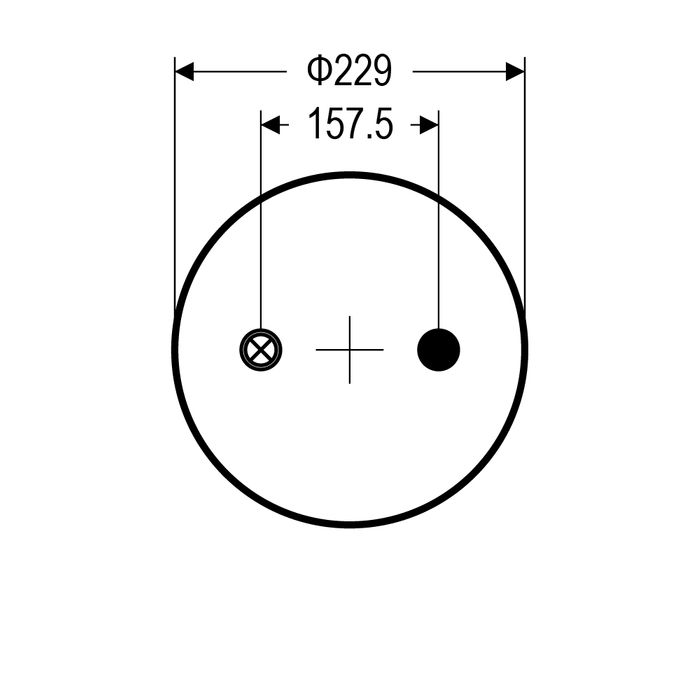

Top Plate
Outer Diameter: 229mm
Mounting: 1x air inlet stud (A), 1x stud (B)
Spacing: 157.5mm (centres)

A. Air Inlet Stud
Length: 64mm
External Thread: 3/4" 16UNF
Internal Thread: 1/4" 18NPT

B. Stud
Length: 35mm
Thread: 1/2" 13UNC

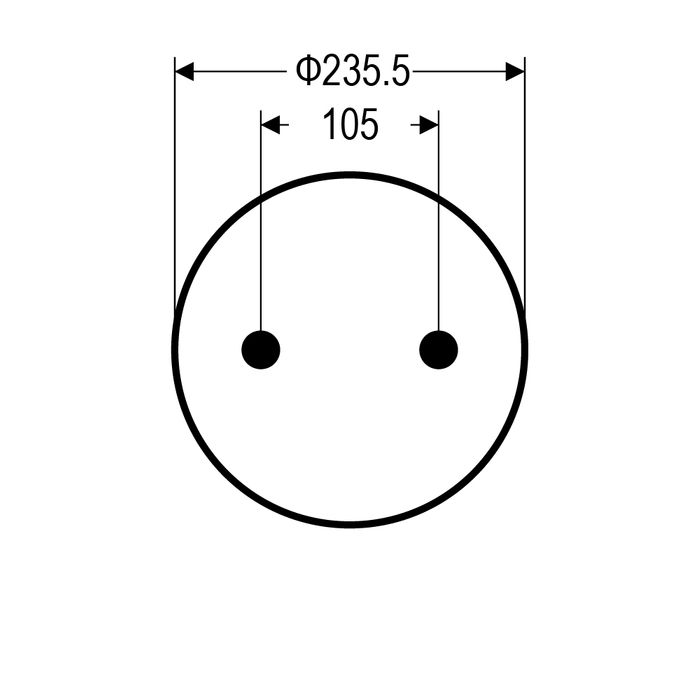

Base
Outer Diameter: 235.5mm
Height: 51mm
Mounting: 2x studs (C)
Spacing: 105mm (centres)

C. Stud
Length: 35mm
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9422
    1K15L-1.5
  • Dayton
    352-9422
  • Kenworth
    K303-6
    K303-14
    K303-15
  • International Navistar
    554762C1
  • Load Guard
    SC2050
  • Toyo
    TRL230H
    3603-8200
  • Watson & Chalin
    AS-0017

Reference Numbers

  • Contitech
    4151NP03
    9 9-12 P 314
  • Firestone
    W01-358-9422
    1T15L-15
    1T15KW-15
  • Goodyear
    1R11-028
