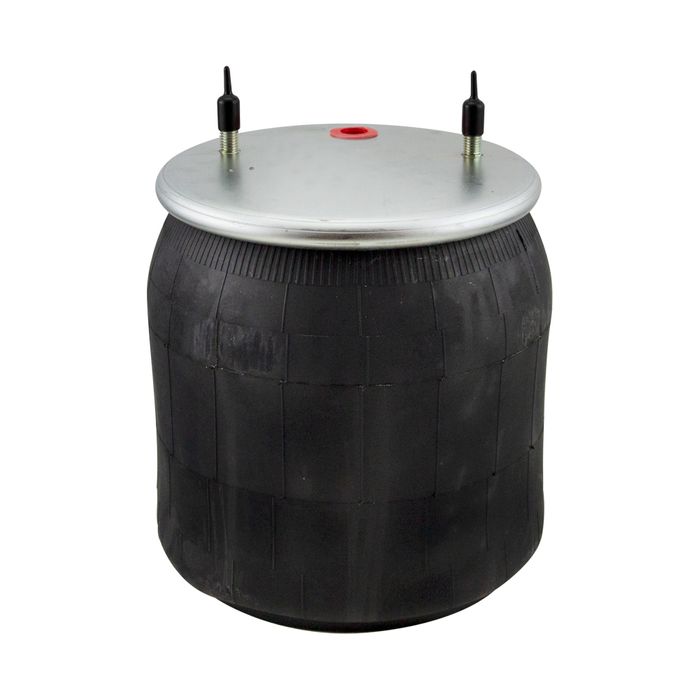

VKNTech Air Bag 1K6297

Stock Code:
730444
Hamilton
In Stock
Christchurch
In Stock
Price:
$284.56 Excl. GST

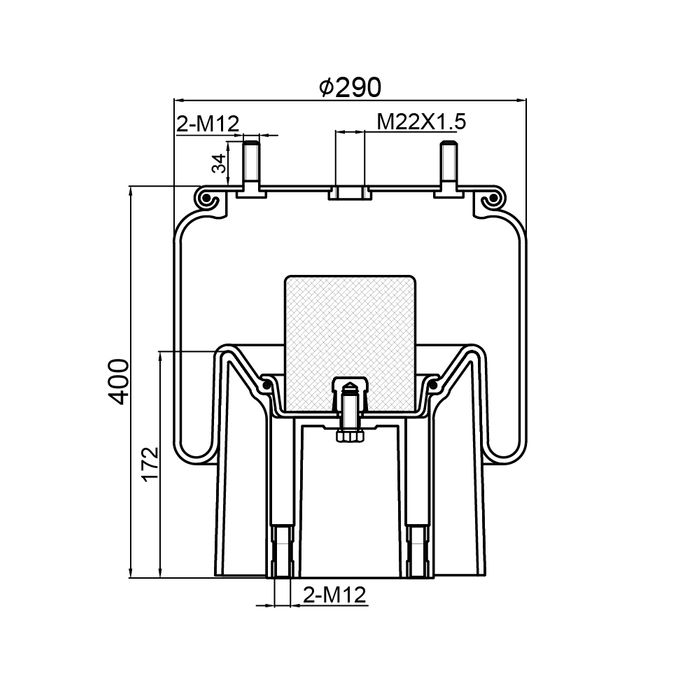

Complete Unit
Outer Diameter: 290mm
Height: 400mm (excl. studs)

Top Plate
Outer Diameter: 231mm
Mounting: 1x air inlet hole (A), 2x studs (B)
Spacing: See top plate diagram

A. Air Inlet Hole
Thread: M22x1.5

B. Stud
Length: 34mm
Thread: M12

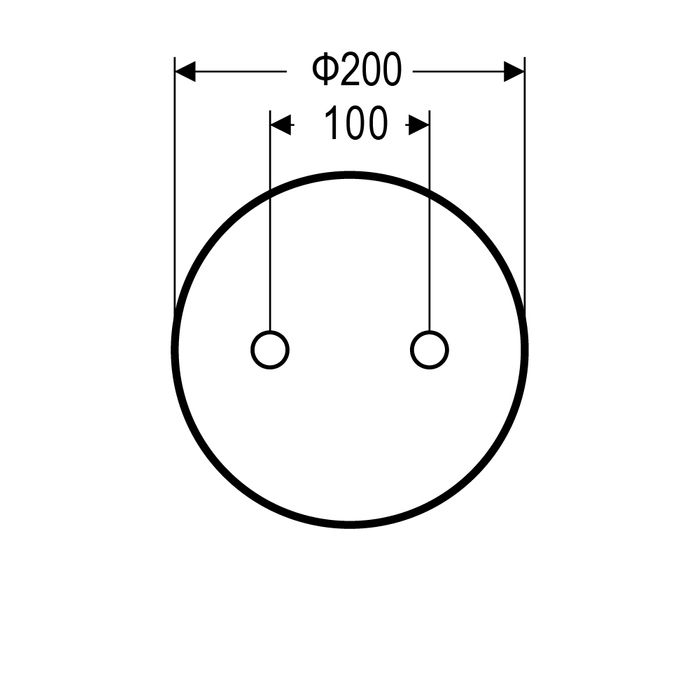

Base
Outer Diameter: 200mm
Height: 172mm
Mounting: 2x threaded holes (C)
Spacing: 100mm (centres)

C. Threaded Hole
Thread: M12



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K6297
    1K15MPW-7
    1K15MPW-7-290
  • Weweler
    W01-968-6297
    US87EUROF
    07364
  • Meritor (ROR)
    21221307
  • Mercedes Discos
    A 946.328.14.01

Reference Numbers

  • Contitech
    4157NP04
  • Firestone
    W01-M58-6297
    1T15MPW-7
  • Goodyear
    1R11-111
  • Springride
    D12B18
  • Phoenix
    1DK21A-4
    1DK21A-8
