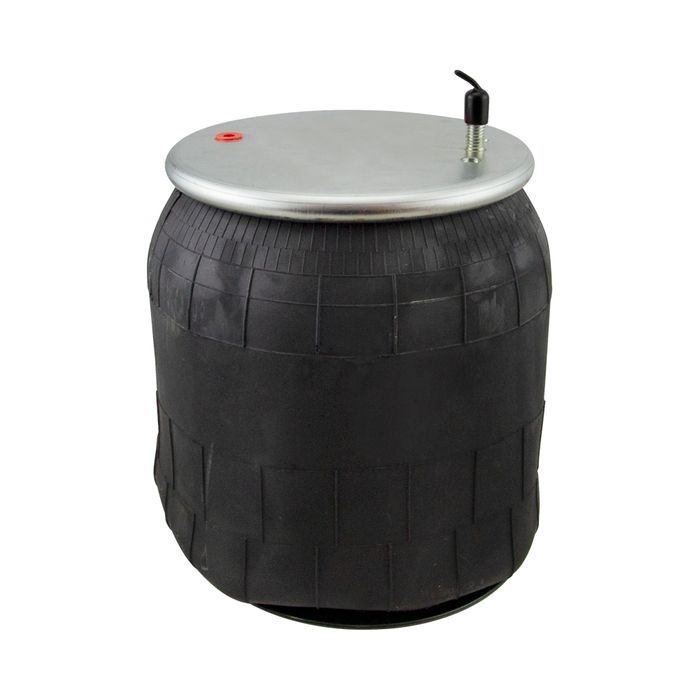

VKNTech Air Bag 1K9335

Stock Code:
58849-002
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$200.25 Excl. GST

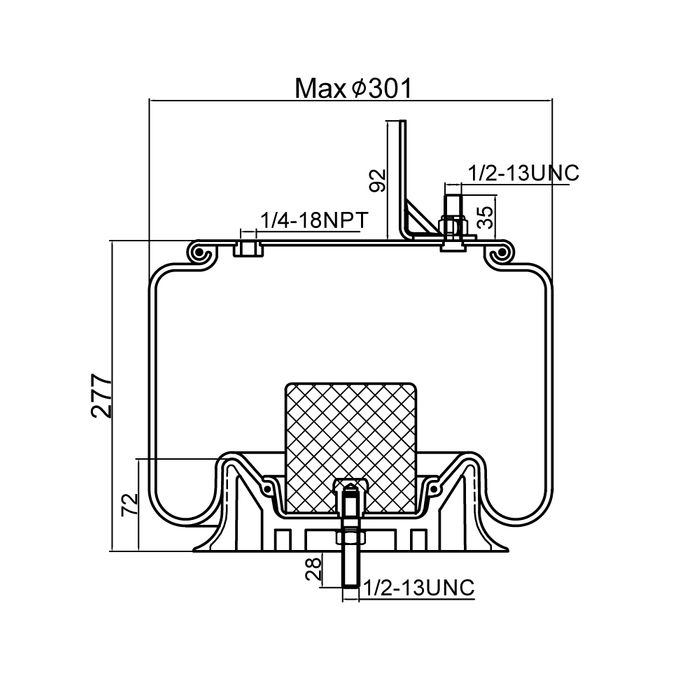

Complete Unit
Outer Diameter: 301mm
Height: 277mm (excl. studs)

Top Plate
Outer Diameter: 287mm

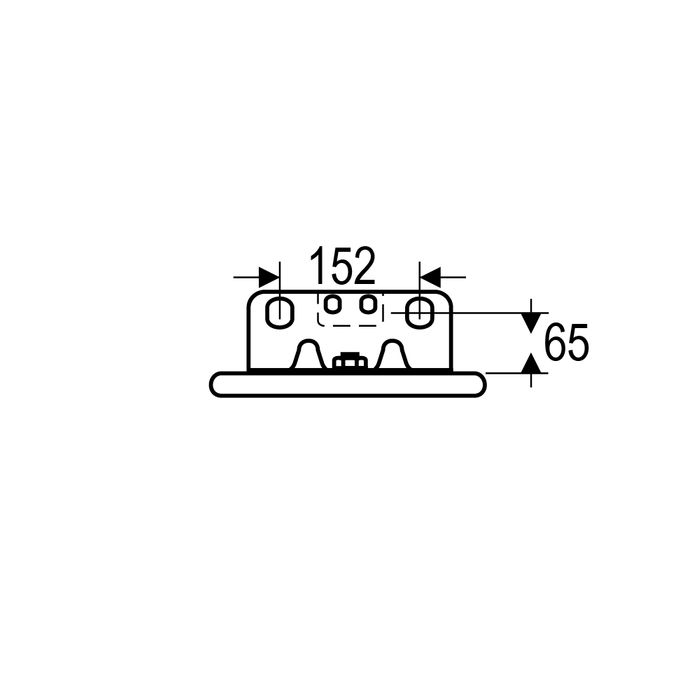

Mounting: 1x air inlet hole (A), 2x studs (B), additional mounting plate (see diagram)
Spacing: 140mm (centres)

A. Air Inlet Hole
Thread: 1/4" 18NPT

B. Stud
Length: 35mm
Thread: 1/2" 13UNC

Base
Outer Diameter: 241mm
Height: 72mm
Mounting: 1x stud (C)

C. Stud
Length: 28mm
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9335
    1K15M-4
  • Hendrickson
    56917-1
    56917-2
  • Freightliner
    Class 6 & 7

Reference Numbers

  • Contitech
    9 10-14 P 465
  • Firestone
    W01-358-9335
    1T15M-4
  • Goodyear
    1R12-620
