VKNTech Air Bag 1K9663

Stock Code:
720220
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$243.00 Excl. GST

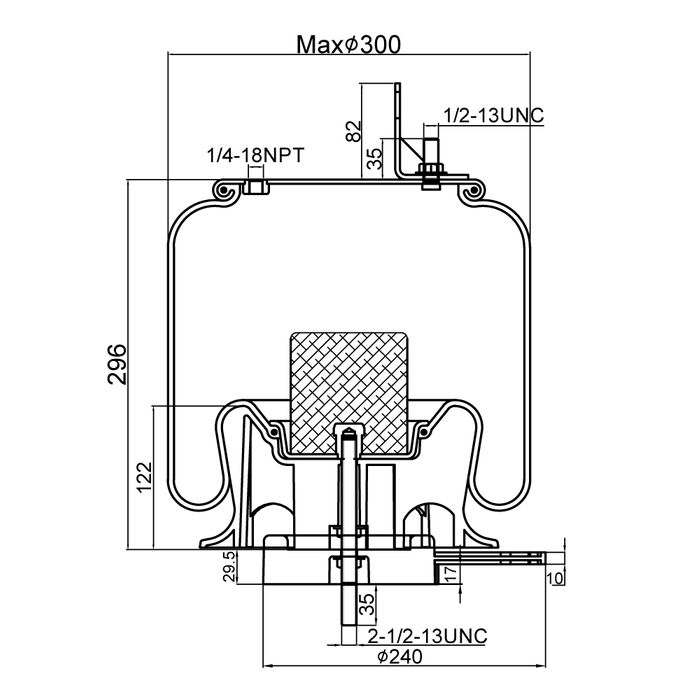

Complete Unit
Outer Diameter: 300mm
Height: 296mm (excl. studs)

Top Plate
Outer Diameter: 231mm
Mounting: 1x air inlet hole (A), 2x studs (B), additional mounting plate (see diagram)

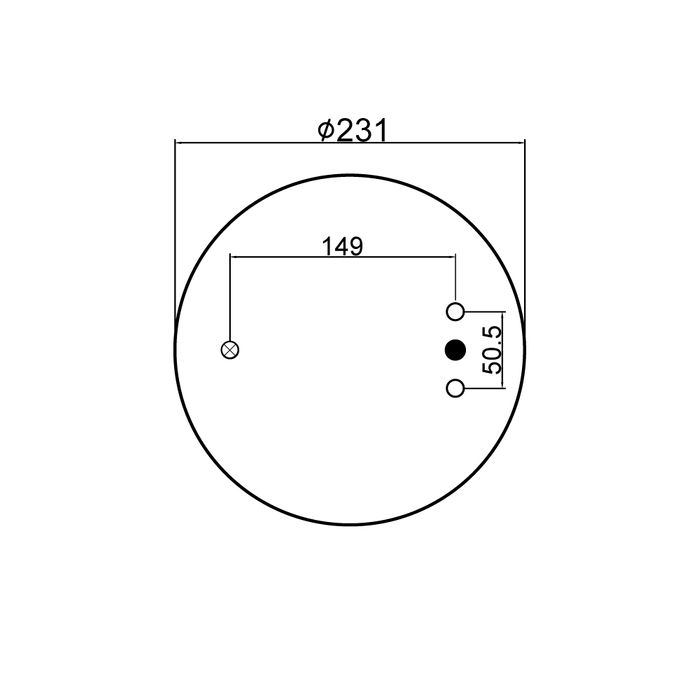

Spacing: See top plate diagram

A. Air Inlet Hole
Thread: 1/4" 18NPT

B. Stud
Length: 35mm
Thread: 1/2" 13UNC

Base

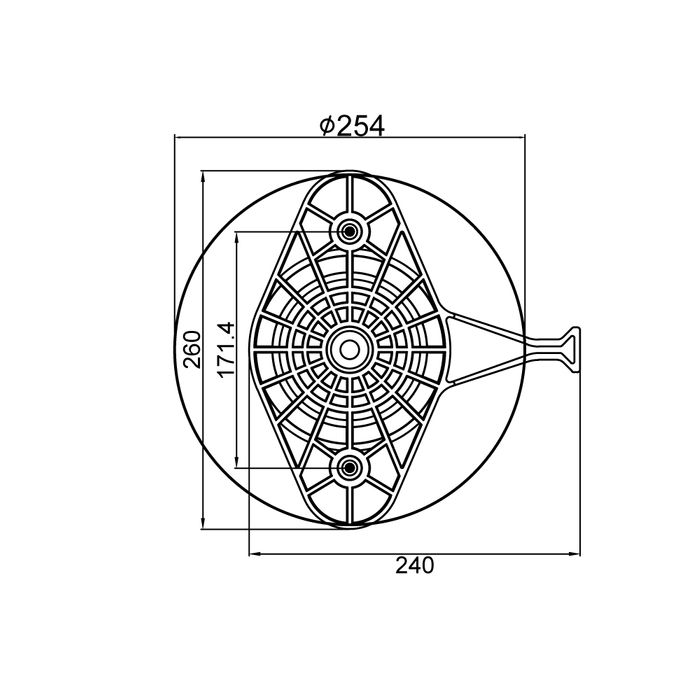

Outer Diameter: 254mm (non-standard, see base diagram for additional measurements)
Height: 122mm
Mounting: 2x studs (C)

C. Stud
Length: 35mm
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9663
    1K15M-8
  • Hendrickson
    60271-2
  • Mack
    57QL57M

Reference Numbers

  • Contitech
    9 10-18.5 P939
  • Firestone
    W01-455-9663
    W01-358-9663
