VKNTech Air Bag 1K9082-S

(0 reviews)
Stock Code:
731100
Hamilton
In Stock
Christchurch
Low Stock
Price:
$175.50 Excl. GST

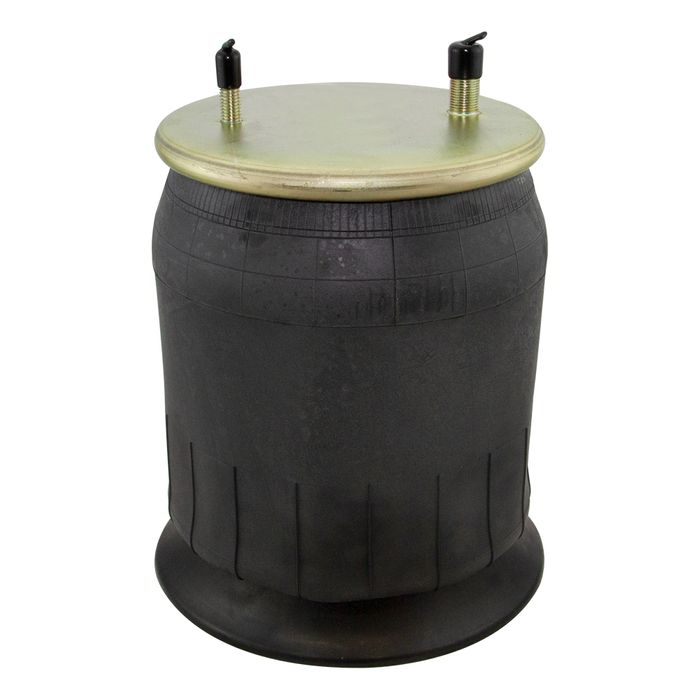

Complete Unit
Outer Diameter: 315mm
Height: 270mm (excl. studs)

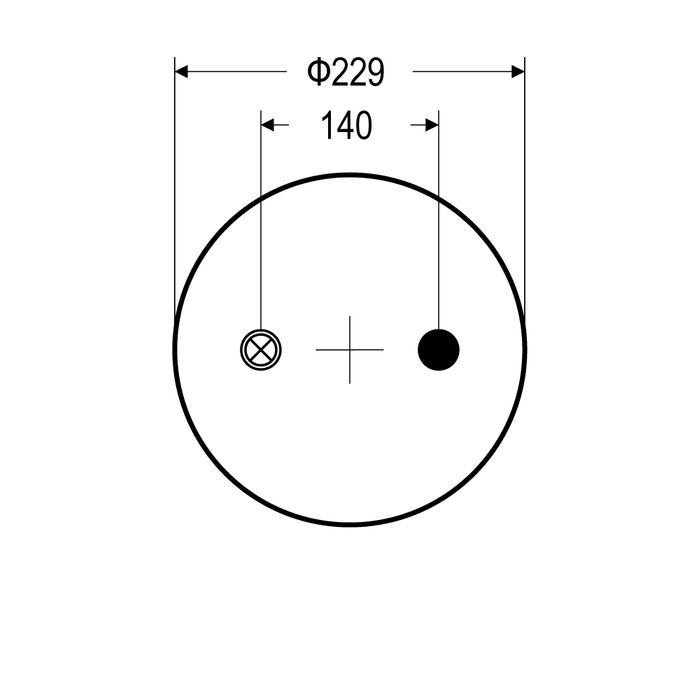

Top Plate
Outer Diameter: 229mm
Mounting: 1x air inlet stud (A), 1x stud (B)
Spacing: 140mm (centres)

A. Air Inlet Stud
Length: 42.6mm
External Thread: 3/4" 16UNF
Internal Thread: 1/4" 18NPT

B. Stud
Length: 42.6mm
Thread: 1/2" 13UNC

Base
Outer Diameter: 260mm
Height: 144mm
Mounting: 4x threaded holes (C)
Spacing: 200mm diagonally (centres)

C. Threaded Hole
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9082-S
    1K15M-6
  • Dayton
    352-9082
  • Fab Tek
    101828
  • Hendrickson
    S2066
    S11651
    B-12514-007
    T-9-106/278/313
    TMB-14-120
    TMB-17-135
  • Kwik Lok/Todo
    CP-5125
  • Neway
    90044200
    90044647
    90557006
    90557027
    90557033
    90557037
    90557054
    90557075
    AR-75-6
    AR-75-9
    AR-120/-US/-US-F
    AR-165-US/-A/-B
    ARDST-123/244-6
    ARD-120-6,ARD-238-6
    ARD-125-6/244-6
    ARD-125-8/244-8
    ARD-190-B
    ART-500-B/-B1/-US-A
    ART-505-B/B-1/-C/C-1
    ART-541-B
    ART-550-US
    TC-120-D
  • R&S Truck & Body
    1090217
  • Reyco
    12882-01
  • Ridewell
    1003589082C
  • Toyo
    TRL240/393
  • Watson & Chalin
    AS-0011
    TA-2075-9
    WB-2500-7.5
    WB-2500-9
  • Meritor (ROR)
    4150NP04

Reference Numbers

  • Contitech
    4156NP04
    9 10-16 P 310
  • Firestone
    W01-358-9082
    1T15M-6
  • Goodyear
    1R12-092
    1R12-093
  • Taurus
    KR506-9082
