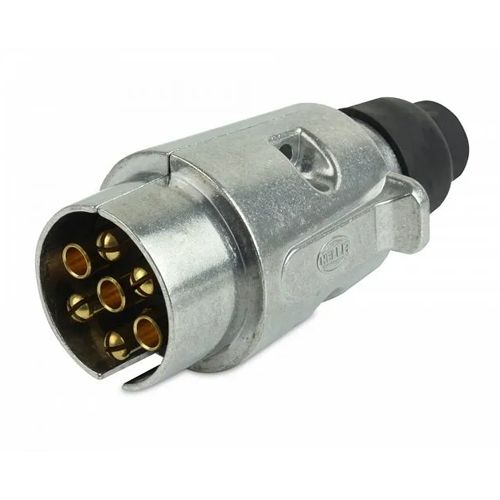

Hella 7 Pole Round Metal Plug

Stock Code:
434911
Hamilton
In Stock
Christchurch
In Stock
Price:
$11.26 Excl. GST

Hella PART NO: 8JA 001 918-005
Hella Legacy PART NO: 4911

Specifications

Maximum Load: 16A with 1.5mm2 cable (total).
Maximum Load: 25A with 2.5mm2 cable (total).

7 Pole Connector Wiring Specifications

Terminal Number Connect to Colour
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown



Maximum load

12V 16A with 1.5mm2 cable (total).
12V 25A with 2.5mm2 cable (total)

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
