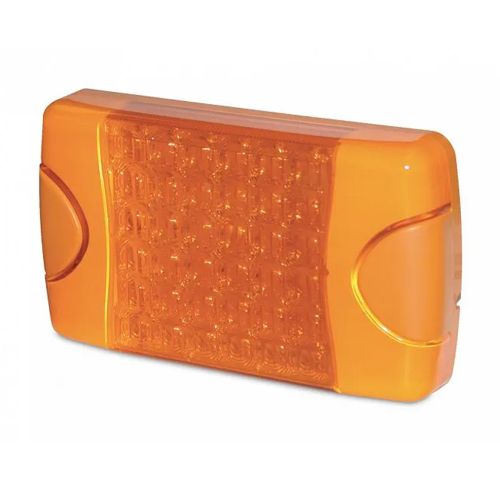

Hella DuraLED Multi-Flash Signal Lamp

Stock Code:
433711
Hamilton
Low Stock
Christchurch
Out of Stock
Price:
$241.36 Excl. GST

Hella Part NO: 2XD 959 037-112
Hella Legacy Part NO: 95903711

Multivolt warning lamp for emergency vehicles. The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Mounting: Two hole surface mount with mounting bushes supplied
Voltage: Multivolt 10-33v
Power Consumption: 9W continuous
Cable Length: Pre-wired with 2.5m of sheathed multi-core cable
Flashing Options: Steady state, Independent flash, Flash state, Blitz state

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

9W continuous (less in flashing modes).

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6   (Protection against dust and high pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

SAE J595 Class 1 (Red and amber versions) EMC e4 03 1925

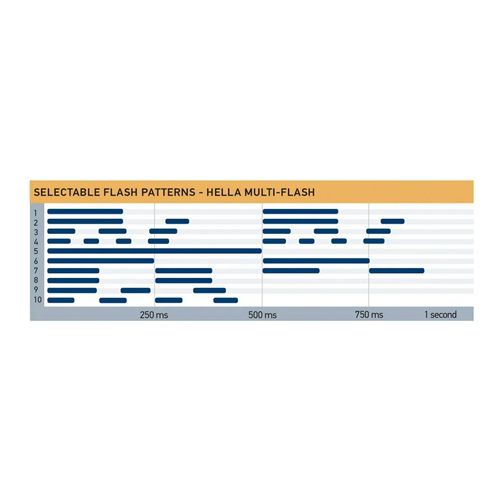

Flashing Options

Steady state Lamp operates as a continuous ON signal
Independent flash Lamp operates from an external flashing system
Flash state Lamp operates in the flash mode preselected by the user
Blitz state Lamp operates in a burst of quad flashes (pattern 4)

The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).
