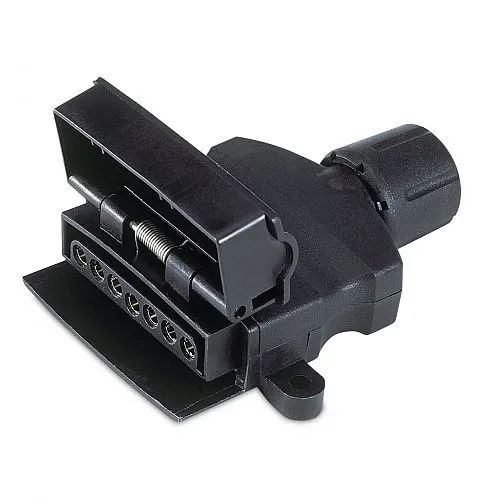

Hella 7 Pole Flat Socket

Stock Code:
430042
Hamilton
In Stock
Christchurch
In Stock
Price:
$26.18 Excl. GST

Hella Part No: 8JB 910 032-011
Hella Legacy Part No: 4920

Impact resistant, UV stabilised plastic. Nickel plated contacts for excellent electrical performance.
Maximum Load 12V: 20A (total)
Maximum Load 24V: 10A (total)

Maximum load

12V 20A (total)
24V 10A (total)

Specifications

7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
