Hella Cable Junction Box - Blade Joiners - 14 Connection Groups

Stock Code:
432770
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$98.71 Excl. GST

Hella Part No: 8KV 177 785-012
Hella Legacy Part No: 2770

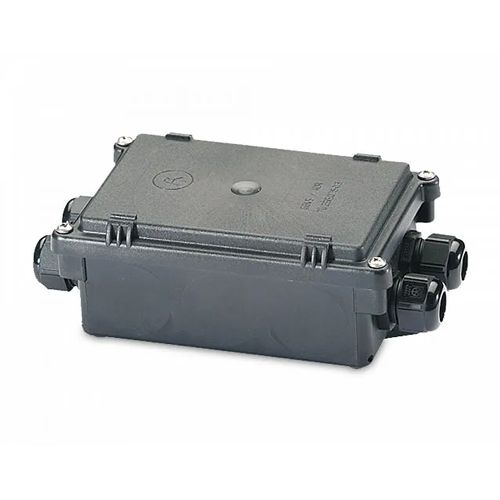

Compact cable junction box with the 4 inlet/outlets, and outer cable size from Ø13mm. Complete with connecting cartridge allowing 14 separate groups of connections (6 x 8-way and 8 x 4-way) all using 6.3mm flat blade connectors. The heavy duty nylon housing will withstand common lubricants found underneath truck and trailers, and is safe to clean with high pressure washing equipment.
Protection: IP 69K (Protection against dust and high pressure/steam jet cleaning)
Plug Cartridge: 14 separate connection groups.

Fittings

2770 4 x Ø13mm
2771 1 × Ø17mm + 3 × Ø13mm + 8 × Ø10mm

Protection

IP 69K (Protection against dust and high pressure/steam jet cleaning)

Plug Cartridge

14 separate connection groups.
