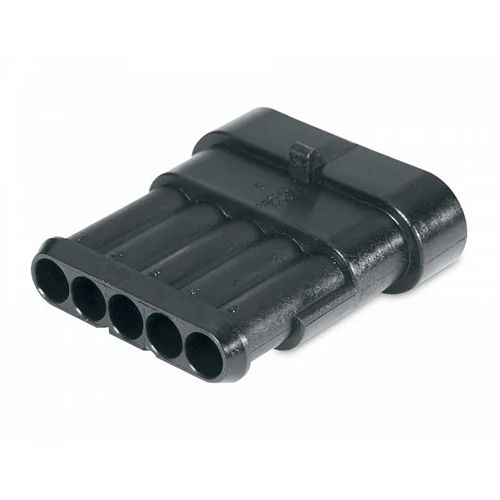

Hella Super Seal Connector - 5 Pole Socket

Stock Code:
432985S
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$7.52 Excl. GST

Hella Part No: 8JA 959 881-055
Hella Legacy Part No: 4985S

Pack of 2

Super seal connector housings were developed to satisfy increasing requirements for safety and reliability in the field of electrical connections. The connectors can be connected to existing components and used with the equipment presently in use in the automotive industry (sensors, oil pressure sensors, water temperature monitoring circuits, etc.).

• IP 67 (Protection against dust and temporary water immersion)
• Robust and reliable contact. Max. current 14A.
• Prefabricated secondary lock ensures that the terminal is plugged into the housing correctly and prevents slipping out of the connector.

Note: For ‘P’ and ‘S’ versions only the bare connector is supplied. Select appropriate seals and terminals to suit. Plug and socket kits come complete with terminals and seals.
Seals: Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter.
Connector: Housing and secondary lock - polyamide 6.6 glass filled
Resistant to: Ozone, salts (CaCI2-NaCI), petrol, diesel fuel, anti-freeze, ATM and engine oil.
Temperature Range: -40°C to 125°C
Insulation resistance: Minimum 200MΩ
Terminals: Male terminal for socket; Brass, tinned
Terminals: Female terminal for plug; Phosphor bronze, tinned
Current rating: 14A maximum
Insert force: Maximum 8N
Contact resistance: Maximum 3MΩ
Connector Compliance: IP 67 (Protection against dust and temporary water immersion)
