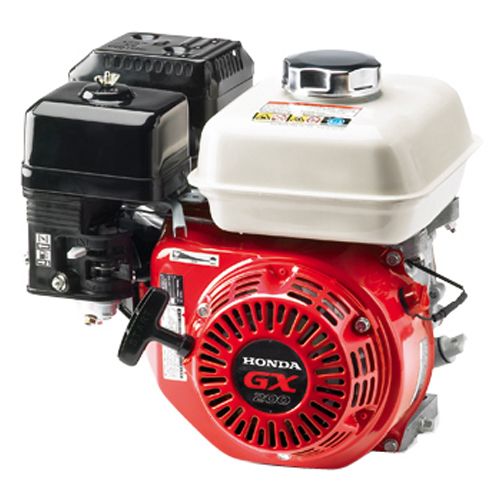

Honda GX200 5.5HP Engine - Recoil Start
Features
Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
Ball bearing supported crankshaft for greater stability
Forged steel crankshaft and rigid crankcase
Heavy duty recoil starter
Automatic mechanical de-compression system
Oil Alert
Specifications
Model: GX200UT2QX2
Type: 4-stroke, overhead valve, single-cylinder, horizontal shaft
Bore & stroke: 68 x 54 mm
Displacement: 196 cm3
Compression ratio: 8.5:1
Net power: 4.1kw (5.5hp) at 3,600 rpm
Continuous rated power: 3.7kw (5.0hp) at 3,600 rpm
Maximum net torque: 12.4 nm at 2,500 rpm
Ignition system: Transistorised magneto ignition
Starting system: Recoil start
Cooling system: Forced-air
PTO shaft rotation: Counter-clockwise (from PTO side)
Shaft: 3/4
Fuel consumption at rated power: 1.7 l/h at 3,600 rpm
Recommended fuel: Unleaded
Lubrication system: Splash
Recommended oil: 10w/30 api sg
Oil capacity: 0.6l
Fuel tank capacity: 3.1l
Dimensions: 313 x 376 x 346mm
Dry weight: 16.2kg
