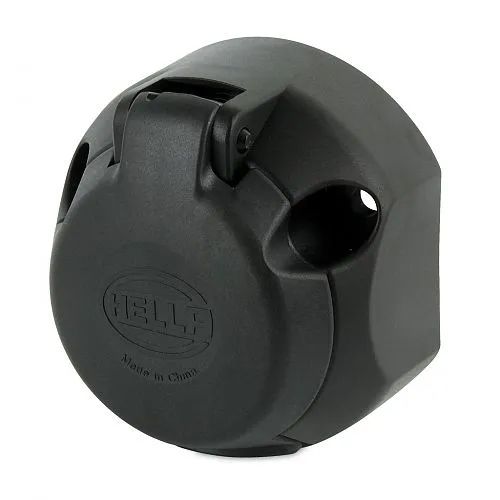

Hella 7 Pole Round Plastic Socket

(0 reviews)
Stock Code:
434901
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$12.52 Excl. GST

Hella Part NO: 8JB 001 943-004
Hella Legacy Part NO: 4901

Black plastic socket with removable contact set.

Maximum load: 12V 16A with 1.5mm2 cable (total).
Maximum load: 12V 25A with 2.5mm2 cable (total)

Terminal 1: Left-hand flasher lamps - Yellow
Terminal 2: Reversing lamps - Black
Terminal 3: Earth return - White
Terminal 4: Right-hand flasher lamps - Green
Terminal 5: Service brakes (or Auxiliary) - Blue
Terminal 6: Stop lamps - Red
Terminal 7: Rear position, number plate and clearance lamps - Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.

Maximum load
12V 16A with 1.5mm2 cable (total).
12V 25A with 2.5mm2 cable (total)

Accessory
9.4901.05 Gasket with cable exit

Specifications
7 Pole Connector Wiring Specifications
Terminal Number Connect to
1 Left-hand flasher lamps Yellow
2 Reversing lamps Black
3 Earth return White
4 Right-hand flasher lamps Green
5 Service brakes (or Auxiliary) Blue
6 Stop lamps Red
7 Rear position, number plate and clearance lamps Brown
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
