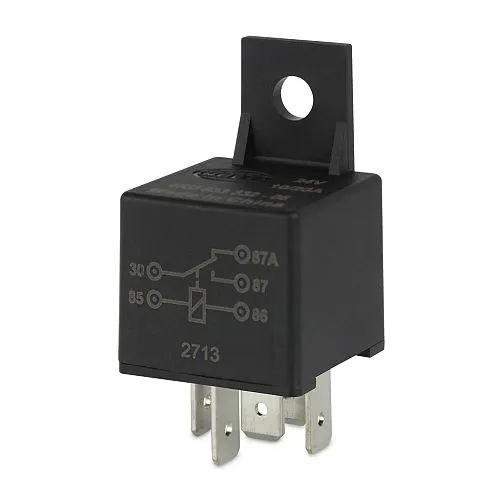

Hella 24V 5 Pin Change-over Mini Relay - 20/10A

Stock Code:
433081
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$11.07 Excl. GST

Hella Part NO: 4RD 933 332-062
Hella Legacy Part NO: 3081

Voltage: 24V
Pins: 5 Pin
Function: Change-over
Terminal Number: 85/2 Earth (end of winding to ground or negative).
Terminal Number: 86/1 Positive.
Terminal Number: 87/5 Output (to consumer e.g. driving lamp).
Terminal Number: 87a/4 Alternative output (1st output, break side).
Terminal Number: 30/3 Positive supply (Input from + battery terminal, direct).
Maximum Load: 30-87 20A
Maximum Load: 30-87a 10A
Current Draw: 70mA
Bracket: Yes

Voltage

24V

Pins

5 Pin

Function

Change-over

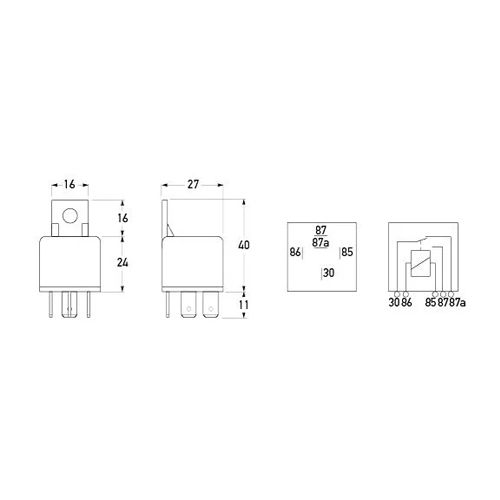

Pin Designations

Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
87a/4 Alternative output (1st output, break side).
30/3 Positive supply (Input from + battery terminal, direct).

Maximum Load

Terminals Amperage
30-87 20A
30-87a 10A

Current Draw

70mA

Bracket

Yes
