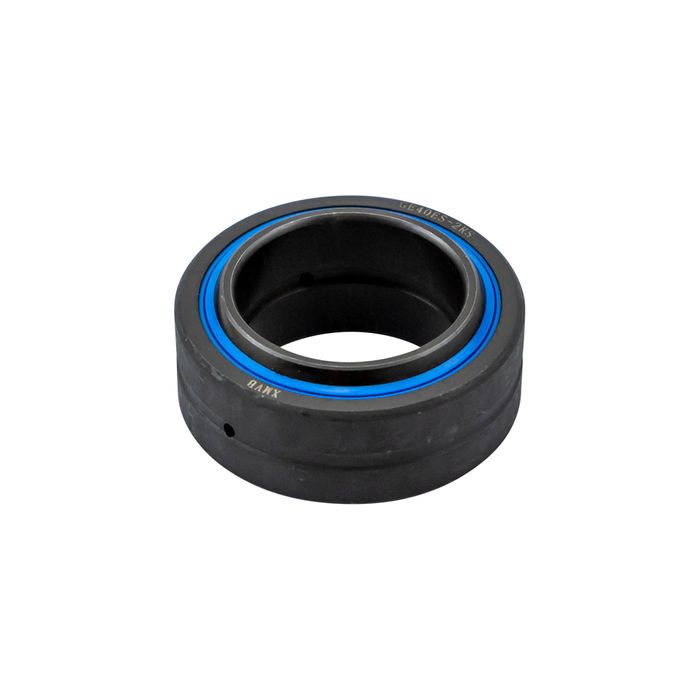

GE40ES-2RS Spherical Bearing
Stock Code:
100023
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$29.97 Excl. GST
This GE40ES-2RS bearing is a metric steel/PTFE spherical plain bearing with a seal on both sides of the bearing and a standard radial internal clearance. The bearing's dimensions are 40x62x28. REquires maintenance.
Lubricant: Regular relubrication – grease
Design (sliding contact surface combination): Steel/steel
Sealing solution:Double-lip seal (Contact seal, NBR, on both sides)
Bore Diameter (ID): 40mm
Outside Diameter (OD): 62mm
Inner Width: 28mm
Outer Width: 22mm
Angle of tilt: 7°
Spherical Diameter: 53mm
Chamfer dimension bore: min. 0.6mm
Chamfer dimension outer ring: min. 1mm
Dynamic Load Rating: 100KN
Static Load Rating: 500KN
