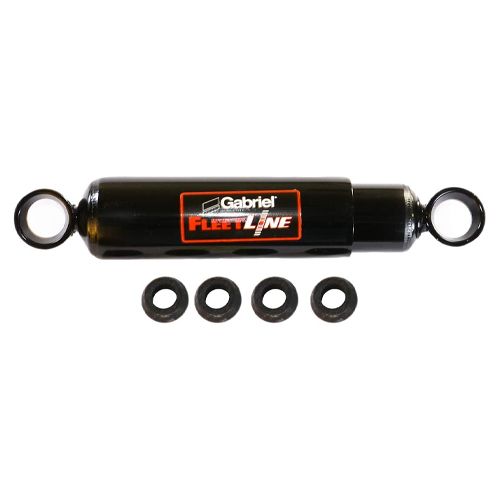

Gabriel Fleetline 85308 Shock Absorber

(0 reviews)
Stock Code:
730865
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$206.48 Excl. GST

At Gabriel, we know not every shock hauls over perfectly paved roads. With our FleetLine 85000 series, your fleet will stand up to whatever the road throws at it. That’s because they’re equipped with a larger 1-5/8" bore so you can be confident you’ll always have the durability you need when the going gets tough.

Designed and built so that class 6-8 trucks, buses and trailers can push the limits of longevity and performance, our 85000 series is as resistant and rugged a shock as they come. With a larger bore, bulged design, and a pressurized, floating piston seal, the FleetLine 85000 series delivers the kind of unrelenting strength, reduced fade and impressive performance your fleet can always count on.

  • Larger 1-5/8" bore supplies improved durability and greater tensile strength for harsher operating conditions
  • Bulged design provides increased fluid capacity and cooler operation in extreme conditions
  • Forged solid steel eye rings and 360˚ arc-welded end mounts deliver tough tensile strength that reduces end mount failures
  • Best-in-class hydraulic stop provides unparalleled system durability and inhibits shocks from topping out and suspension from over-extending
  • Rugged, self-compensating piston seal for consistent damping ability and reduced fade throughout the shock life
  • Super-finished chromed piston rod ensures superior corrosion resistance, unyielding performance and extended product life
  • Custom-blended high-temperature fluid reduces friction and wear in extreme operating conditions
  • 10-stage valving equips drivers with maximum comfort and control, enhanced durability in harsh operating environments and self-cleaning functionality for longer performance
  • D.O.M (Drawn-Over-Mandrel) tubing reduces internal wear


Specifications
Product Line: FleetLine
Extended Length: 25.11" (637.79mm)
Collapsed Length: 15.83" (402.08mm)
Stroke: 9.28" (235.71mm)
Bore: 1-5/8" (41.28mm)
Dust Tube: Yes
Recoil Cutoff: Yes
Rebound: 764 lb. (346.5kg)
Compression: 254 lb. (115.2kg)

Make Series Additional Information
ACF BRILL BUS   C-44 City Bus and T-44 Trolley Bus
ACF BRILL BUS   IC-41 Intercity Bus Serial #1088 and on
ARVIN MERITOR   Models with Manufacturing Number
CHEVROLET TRUCK (Also See GMC Truck) 7, 70 & 7000 Series R Chassis - Rear Engine Bus
CHEVROLET TRUCK (Also See GMC Truck) 8, 80 & 8000 Series R Chassis - Rear Engine Bus
GMC TRUCK 7500 Series R Chassis - Rear Engine Bus
GMC TRUCK 8500 Series R Chassis - Rear Engine Bus
INTERNATIONAL (NAVISTAR) S Series School Bus 1853 DFC3
INTERNATIONAL (NAVISTAR) S Series School Bus 193 RE Models
INTERNATIONAL (NAVISTAR) Transtar - Conventional D-400, DF-400, DC-400, DCF-400 & DCF-400M with Axle Code 02136
KENWORTH Additional O.E.M. Interchanges OE PLUS Shock Stamping Number
KENWORTH Additional O.E.M. Interchanges TruckMaster Shock Stamping Number
ORION BUS INDUSTRIES   Orion 1
ORION BUS INDUSTRIES   Orion II
PETERBILT 362 Series Models with Air Trac Suspension (38000 or 40000 lb)
PETERBILT Additional Applications OE PLUS Shock Stamping Number
PETERBILT Additional Applications TruckMaster Shock Stamping Number
VOLVO Additional Applications 1500 Models Models with Velvet Ride Suspension
Upper Mount Code: EB3
Upper Mount Kit  (QTY): 401754 (4)
Lower Mount Code: EB3
Lower Mount Kit  (QTY): n/a
