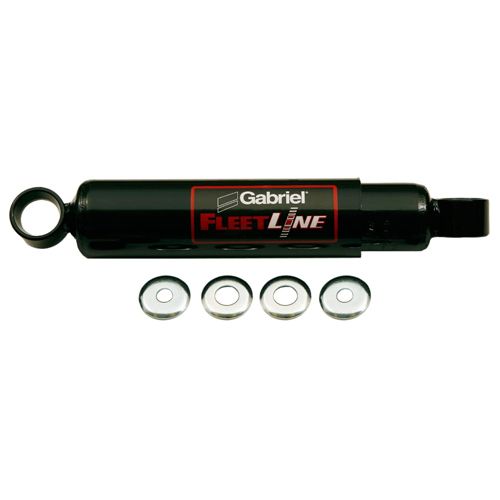

Gabriel Fleetline 85012 Shock Absorber

Stock Code:
85012
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$184.00 Excl. GST

At Gabriel, we know not every shock hauls over perfectly paved roads. With our FleetLine 85000 series, your fleet will stand up to whatever the road throws at it. That’s because they’re equipped with a larger 1-5/8" bore so you can be confident you’ll always have the durability you need when the going gets tough.

Designed and built so that class 6-8 trucks, buses and trailers can push the limits of longevity and performance, our 85000 series is as resistant and rugged a shock as they come. With a larger bore, bulged design, and a pressurized, floating piston seal, the FleetLine 85000 series delivers the kind of unrelenting strength, reduced fade and impressive performance your fleet can always count on.

  • Larger 1-5/8" bore supplies improved durability and greater tensile strength for harsher operating conditions
  • Bulged design provides increased fluid capacity and cooler operation in extreme conditions
  • Forged solid steel eye rings and 360˚ arc-welded end mounts deliver tough tensile strength that reduces end mount failures
  • Best-in-class hydraulic stop provides unparalleled system durability and inhibits shocks from topping out and suspension from over-extending
  • Rugged, self-compensating piston seal for consistent damping ability and reduced fade throughout the shock life
  • Super-finished chromed piston rod ensures superior corrosion resistance, unyielding performance and extended product life
  • Custom-blended high-temperature fluid reduces friction and wear in extreme operating conditions
  • 10-stage valving equips drivers with maximum comfort and control, enhanced durability in harsh operating environments and self-cleaning functionality for longer performance
  • D.O.M (Drawn-Over-Mandrel) tubing reduces internal wear


Specifications
Product Line: FleetLine
Extended Length: 21.02" (533.91mm)
Collapsed Length: 13.23" (336.04mm)
Stroke: 7.79" (197.87mm)
Bore: 1-5/8" (41.28mm)
Dust Tube: Yes
Recoil Cutoff: No
Rebound: 523 lb. (237.2kg)
Compression: 199 lb. (90.3kg)

Make Series Additional Information
ARVIN MERITOR   Models with Manufacturing Number
BLUEBIRD SCHOOL BUS Additional Applications Buses with 3/4" Mounting Pins
BROCKWAY SCHOOL BUS   300, 400, 500 Models With 3/4" Mounting Pins
CHANCE COACH   Buses with 3/4" Mounting Pins
CHEVROLET TRUCK (Also See GMC Truck) W - Series (Isuzu) W4 Models
CHEVROLET TRUCK (Also See GMC Truck) W - Series (Isuzu) W4 Models Flatlow
FORD Motorhome Chassis P-400 & 4000 Motorhome Chassis with H.D. Springs
FORD Motorhome Chassis M-400 & M-500 Motorhome Chassis
FORD P-Series - Parcel Delivery P-400 & 4000 w/ H. D. Springs
FORD P-Series - Parcel Delivery P500, P-5000
FORD P-Series - Parcel Delivery P-600
GMC TRUCK W - Series (Isuzu) W4 Models
GMC TRUCK W - Series (Isuzu) W4 Models Flatlow
INTERNATIONAL (NAVISTAR) A, B, AC and BC Conventional A-170, B-170, AC-170, ACF-170, BC-170, A-180, B-180, AC-180, BC-180, BCF-170 Models
INTERNATIONAL (NAVISTAR) A, B, AC and BC Conventional C-150 Models
INTERNATIONAL (NAVISTAR) Binder Binder
INTERNATIONAL (NAVISTAR) Cargostar CO-1600, CO-1610A & B, CO-1630A & B, CO-1700, CO-1710A & B, CO-1730A & B, CO-1750, CO-1750A & B, CO-1800, CO-1810A & B, CO-1830A & B, CO-1850, and CO-1850A & B
INTERNATIONAL (NAVISTAR) Loadstar - Conventional 1600, 1600 (4x4), 1610, 1610 (4x4), 1610FC, 1700, 1700 (4x4), 1710, 1710 (4x4), F-1700, 1750, 1800, 1810, F-1800, F-1800-D, 1850, F-1850, 1890 & 1890-D with 9000, 10800 or 12000 lb Front Axle
INTERNATIONAL (NAVISTAR) Loadstar - Conventional 1600, 1600 (4x4), 1610, 1610 (4x4), 1700, 1700 (4x4), 1710, 1710 (4x4), 1750, 1800, 1810, 1850, 1890 & 1890-D Models
INTERNATIONAL (NAVISTAR) Loadstar - Conventional 1600, 1600 (4x4), 1610, 1610 (4x4), 1700, 1700 (4x4), 1710, 1710 (4x4), F-1700, 1750, 1800, 1810, F-1800, F-1800-D, 1850, F-1850, 1890 & 1890-D Exc. Axle Codes 02054, 02057, 02059, 02089, 02091, 02098, 02101, 02109, 02139, 02208, 02218, 02228, 02309, 0232
INTERNATIONAL (NAVISTAR) Metro & Multi-Shop Series M1600, MC1600, M1700 & MC1700
INTERNATIONAL (NAVISTAR) Metro & Multi-Shop Series MA1200, M1400, M1500, MA1500
INTERNATIONAL (NAVISTAR) S Series School Bus 1603, 1703, 1803 & 1853
INTERNATIONAL (NAVISTAR) S Series School Bus 1603, 1703, 1803 & 1853 - Exc. Axle Codes 02054, 02057, 02059, 02089, 02091, 02098, 02101, 02109, 02139, 02208, 02218, 02228, 02309, 02329, 02339
INTERNATIONAL (NAVISTAR) S Series School Bus 1603, 1703, 1803 & 1853 with 9000, 10800 or 12000 lb Front Axle
ISUZU Additional Applications KS22 Models (All)
ISUZU NPR Series NPR Models (NPC & NPN)
ISUZU NPR Series NPR Models Flatlow
KENWORTH Additional O.E.M. Interchanges OE PLUS Shock Stamping Number
KENWORTH Additional O.E.M. Interchanges TruckMaster Shock Stamping Number
KENWORTH W990 Models with 14,600 lb Taperleaf Front Spring Suspension
PETERBILT 220 Series Models with 12,000 lb Front Axle
PETERBILT 325 Series Models with 12000 lb Set Back Front Axle
PETERBILT 330 Series Models with 12000 lb Set Back Front Axle
PETERBILT 335 Series Models with 12000 lb Set Back Front Axle
PETERBILT 340 Series Models with 12000 lb Set Back Front Axle
PETERBILT 357 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 362 Series C.O.E. Models with Progressive Springs
PETERBILT 365 Series Models with 12,000 lb to 16,000 lb Taperleaf Front Suspension (Set-Back Axle)
PETERBILT 367 Series Models with 10,000 lb to 16,000 lb Taperleaf Front Spring Suspension and with Set Back Front Axle.
PETERBILT 372 Series C.O.E. Models with Front Spring Suspension
PETERBILT 375 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 376 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 377 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 378 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 379 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 385 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 386 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 387 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 388 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT 389 Series Conventional Models with Spring Suspension and with Set Back Front Axle.
PETERBILT Additional Applications OE PLUS Shock Stamping Number
PETERBILT Additional Applications TruckMaster Shock Stamping Number
Upper Mount Code: EB2
Upper Mount Kit  (QTY): 145080 (2)
Lower Mount Code: EB2
Lower Mount Kit  (QTY): n/a
