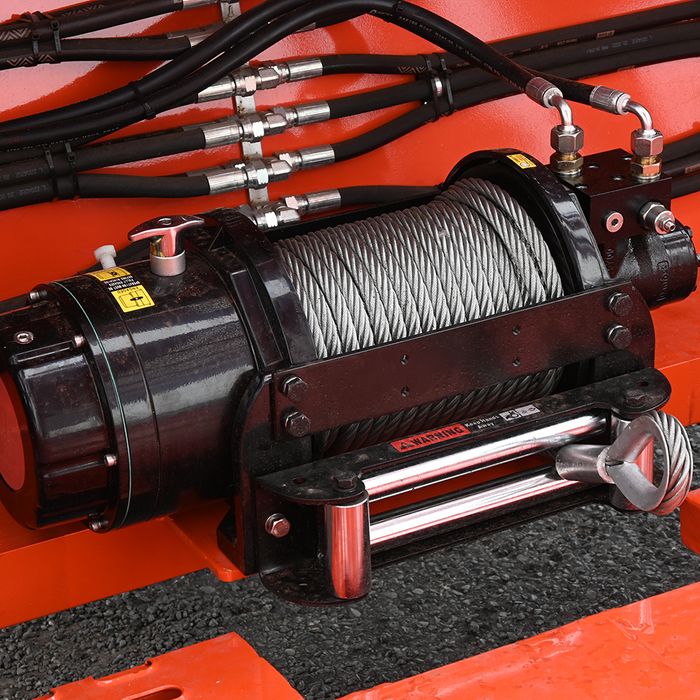

Comeup HV-15 Winch

(0 reviews)
Stock Code:
439015
Hamilton
Low Stock
Christchurch
Out of Stock
Price:
$6,562.50 Excl. GST
  • Powered by a PTO/power take off unit driven pump
  • Fast and variable recovery speeds for high work rate
  • Highly efficient and constant operating torque motor
  • 2 stage planetary gear train for greater pulling force
  • Turn clutch by ergonomic T-handle for rapid wire rope payout
  • Drag brake and over center valve providing complete braking
  • EN 14492-1 supported: 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery
  • Meets SAE J706, CE machinery directive 2006/42/EC and EN 14492-1:2006 Power Driven Winches

Wire rope sold separately.

  • Part number: PN 686732 (Std. drum)  / PN 687548 (Std. drum - Clutch in left side)
  • Rated line pull: 6,800 kg / 15,000 lb (EN 14492-1 rating & SAE J706 rating)
  • Line speed (at 1st layer of rope) : 9 mpm at 60 l/min (30 fpm at 15.9 g/min)
  • Operation pressure: 150 bar / 2,175 psi
  • Max oil flow: 60 l/min (15.9 g/min)
  • Hydraulic motor: 156 cm3/rev (9.5 in3/rev)
  • Gear ratio: 2-stage planetary gear 19.4:1
  • Winch construction: Aluminum die cast housings with steel drum
  • Clutch (Freespooling): Rotating ring gear
  • Brake: Spring applied drag brake together with over-center valve supplied
  • Rotation of winch: Wire rope shall be under-wound orientation only
  • Drum barrel diameter: 127 mm (5")
  • Drum flange diameter: 252 mm (9.9”)
  • Distance between flanges: 255 mm (10")
  • Mounting bolt pattern:
    303.5 x 114.3 mm (12” x 4.5”)
    368.5 x 171.2 mm (14.5” x 6.7”)
  • Wire rope recommended:
    14 mm x 27 m (9/16" x 89') 1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 137 kN (30,742 lbf) required for SAE J706 and EN 14492-1 ratings
  • Winch weight: 72 kg / 158.7 lb
  • Gross weight: 88 kg / 194 lb
  • Box dimension, (L x D x H) : 735 x 430 x 335 mm (29" x 16.9" x 13.2")
