VKNTech Air Bag 1K6416

Stock Code:
730530
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$175.50 Excl. GST

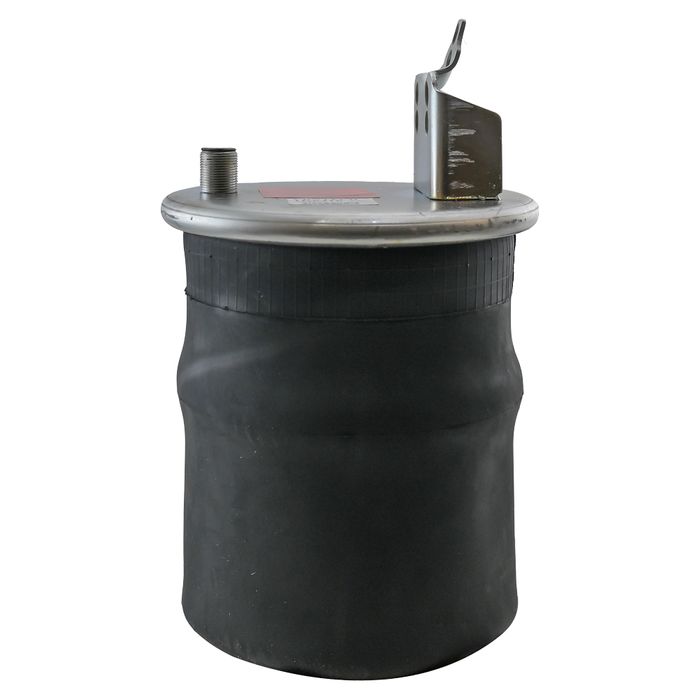

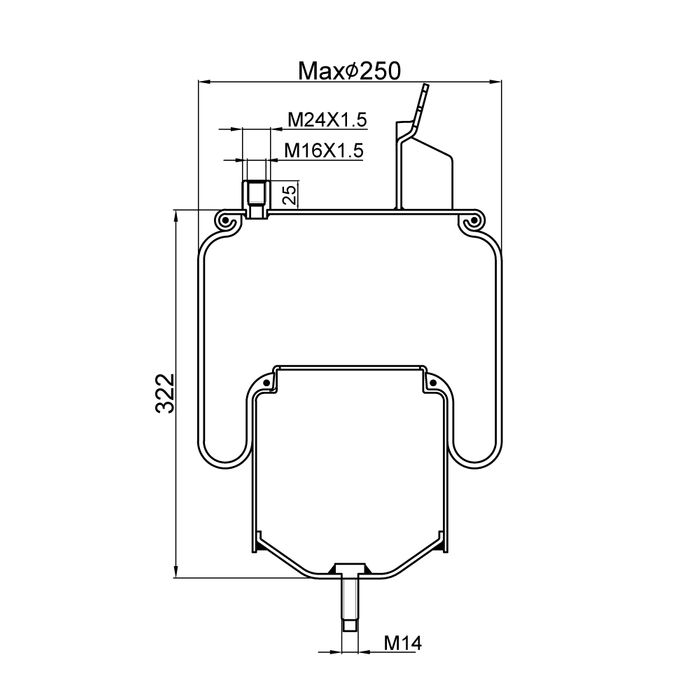

Complete Unit
Outer Diameter: 250mm
Height: 322mm (excl. studs)

Top Plate
Outer Diameter: 229mm
Mounting: 1x air inlet stud (A), 1 bracket
Spacing: See top plate diagram

A. Air Inlet Stud
Length: 25mm
External Thread: M24x1.5
Internal Thread: M16x1.5

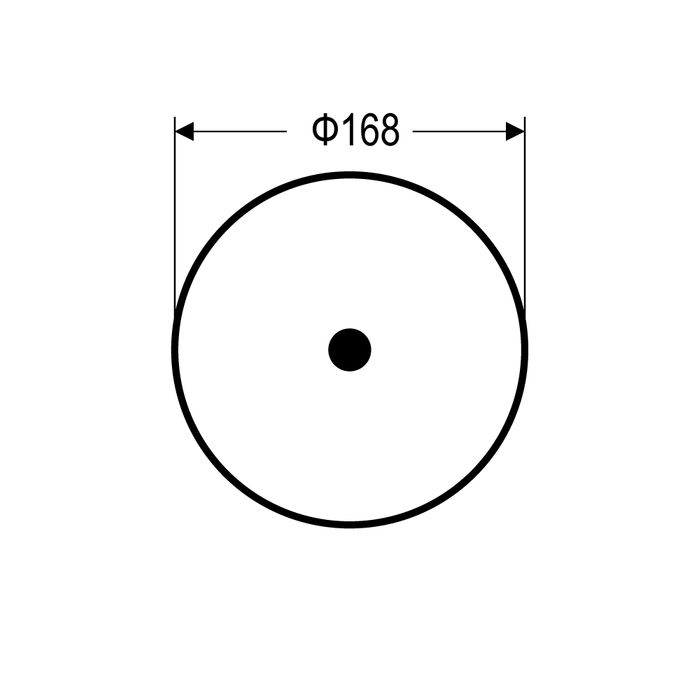

Base
Outer Diameter: 168mm
Mounting: 1x stud (B)

B. Stud
Thread: M14



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K6416
    1K6608
  • Volvo
    1076416
    3171693
    20374510
    20456152
    20531985
    20582215
    21961456

Reference Numbers

  • Contitech
    6608NP01
