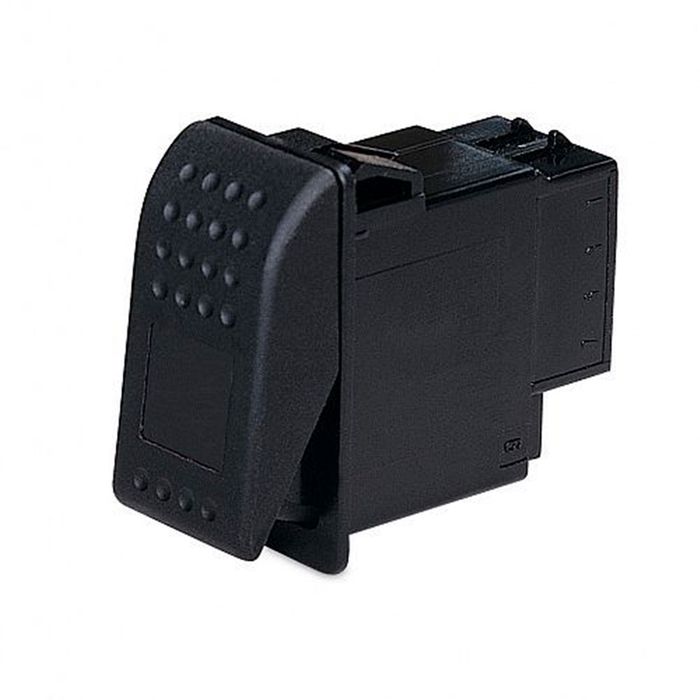

Hella Rocker Switch Off-On Universal

Stock Code:
430910
Hamilton
Low Stock
Christchurch
Out of Stock
Price:
$26.40 Excl. GST

Hella Part No: 6EH 007 832-011

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated in selected switches.

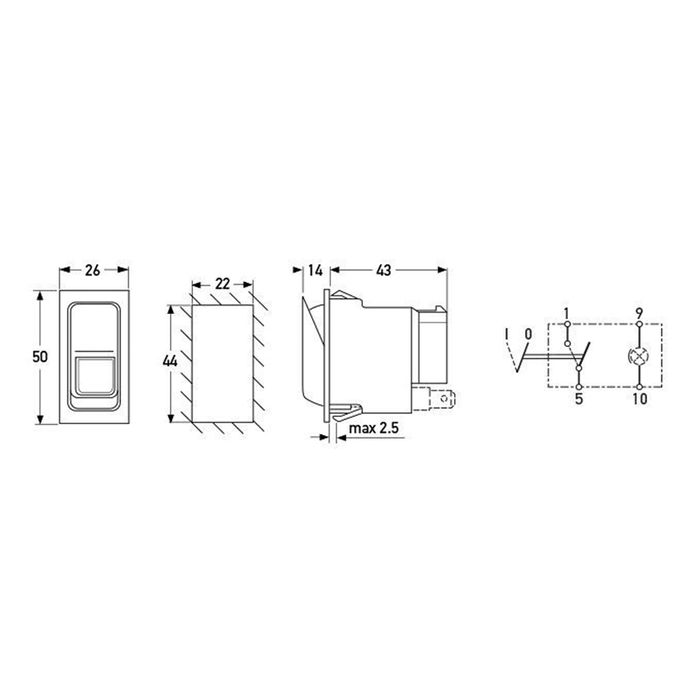

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

HELLA P/N Terminals
6EH 007 832-011 4 (Including lamp)

Maximum Load

12V 16A
24V 8A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.
Location lamp illuminates with park lights. Pilot lamp illuminates when switch is in the ‘on’ position.
