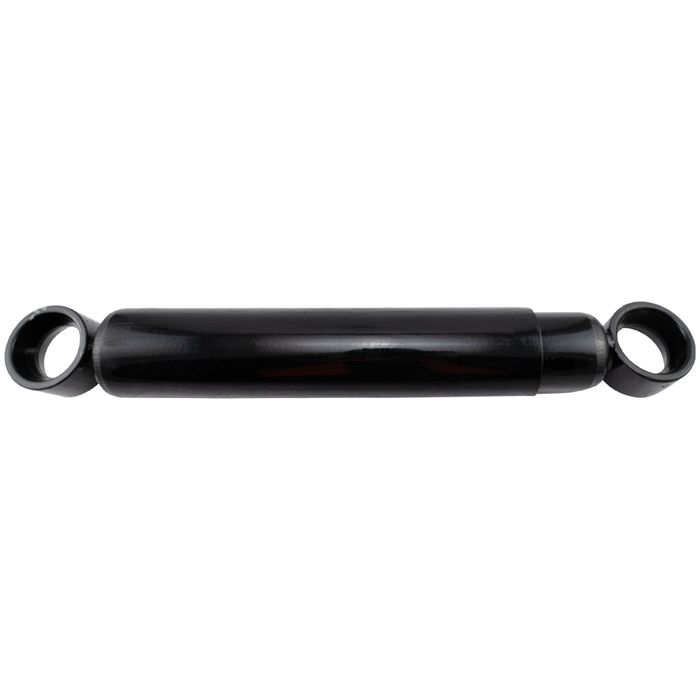

Gabriel Fleetline 85001 Shock Absorber
At Gabriel, we know not every shock hauls over perfectly paved roads. With our FleetLine 85000 series, your fleet will stand up to whatever the road throws at it. That’s because they’re equipped with a larger 1-5/8" bore so you can be confident you’ll always have the durability you need when the going gets tough.
Designed and built so that class 6-8 trucks, buses and trailers can push the limits of longevity and performance, our 85000 series is as resistant and rugged a shock as they come. With a larger bore, bulged design, and a pressurized, floating piston seal, the FleetLine 85000 series delivers the kind of unrelenting strength, reduced fade and impressive performance your fleet can always count on.
- Larger 1-5/8" bore supplies improved durability and greater tensile strength for harsher operating conditions
- Bulged design provides increased fluid capacity and cooler operation in extreme conditions
- Forged solid steel eye rings and 360˚ arc-welded end mounts deliver tough tensile strength that reduces end mount failures
- Best-in-class hydraulic stop provides unparalleled system durability and inhibits shocks from topping out and suspension from over-extending
- Rugged, self-compensating piston seal for consistent damping ability and reduced fade throughout the shock life
- Super-finished chromed piston rod ensures superior corrosion resistance, unyielding performance and extended product life
- Custom-blended high-temperature fluid reduces friction and wear in extreme operating conditions
- 10-stage valving equips drivers with maximum comfort and control, enhanced durability in harsh operating environments and self-cleaning functionality for longer performance
- D.O.M (Drawn-Over-Mandrel) tubing reduces internal wear
Specifications
Product Line: FleetLine
Extended Length: 26.3" (668.02mm)
Collapsed Length: 16.39" (416.31mm)
Stroke: 9.92" (251.97mm)
Bore: 1-5/8" (41.28mm)
Dust Tube: Yes
Recoil Cutoff: No
Rebound: 1202 lb. (545.2kg)
Compression: 186 lb. (84.4kg)
Make | Series | Additional Information |
---|---|---|
ARVIN MERITOR | Models with Manufacturing Number | |
FORD | AeroMax (A, AT, AAT, 8500, 9500) Series | All with 21000 lb or 23000 lb Axle and 46" Taperleaf spring |
FORD | B - Series - Bus Cowl Chassis | B - 700, B - 800 with 21000 lb Taperleaf Springs |
FORD | F Series - Conventional Cab | F-700, F-800 with 21000 lb Taperleaf Springs |
FORD | FT Series - Conventional Cab | FT-900 with 46" Taperleaf Springs and 21000 lb Axle |
FORD | L, LT & LTS - Conventional Cab | L-8000, L-9000, LT-8000 or LT-9000 Models with 21000 or 23000 lb. with 46" Taperleaf Spring |
FORD | LN & LNT - Conventional Cab | LN-7000, LN-8000, LN-9000, LNT-8000 or LNT-9000 Models with 21000 or 23000 lb. with 46" Taperleaf Spring |
KENWORTH | Additional O.E.M. Interchanges | Models with Taper Leaf Springs on Front Axle |
KENWORTH | Additional O.E.M. Interchanges | OE PLUS Shock Stamping Number |
KENWORTH | Additional O.E.M. Interchanges | TruckMaster Shock Stamping Number |
KENWORTH | C500, C500B, C500K, C540 & C550 | Models with Taper Leaf Springs on Front Axle |
KENWORTH | ICON 900 | Models with Taper Leaf Springs on Front Axle |
KENWORTH | K100, K100E, K125 | Models with Taper Leaf Springs on Front Axle |
KENWORTH | K300 | Models with Taper Leaf Springs on Front Axle (1" Mounting bolts) |
KENWORTH | T2000 | Models with Taper Leaf Springs on Front Axle |
KENWORTH | T300 | Models with Taper Leaf Springs on Front Axle (1" Mounting bolts) |
KENWORTH | T400, T400B, T450B | Models with Taper Leaf Springs on Front Axle |
KENWORTH | T600, T600A, T600B, T602 | Models with Taper Leaf Springs on Front Axle |
KENWORTH | T800, T800B, T800B(8x4), T800SH, T800H, T800W | Models with Taper Leaf Springs on Front Axle |
KENWORTH | W900, W900B, W900L, W900S | Models with Taper Leaf Springs on Front Axle |
MACK | CH Series | CH600 Models with ST34 Suspension |
MACK | CL Series | CL600, CL700 Models with ST34 Suspension |
MACK | MH Series | MH Models with O.E.M. Number |
MACK | R Series | RD Models with ST34 Suspension |
MACK | RW Series | RW Models with O.E.M. Number |
PETERBILT | Additional Applications | OE PLUS Shock Stamping Number |
PETERBILT | Additional Applications | TruckMaster Shock Stamping Number |
Upper Mount Code: | EB3 |
Upper Mount Kit (QTY): | 401754 (4) |
Lower Mount Code: | EB3 |
Lower Mount Kit (QTY): | n/a |
