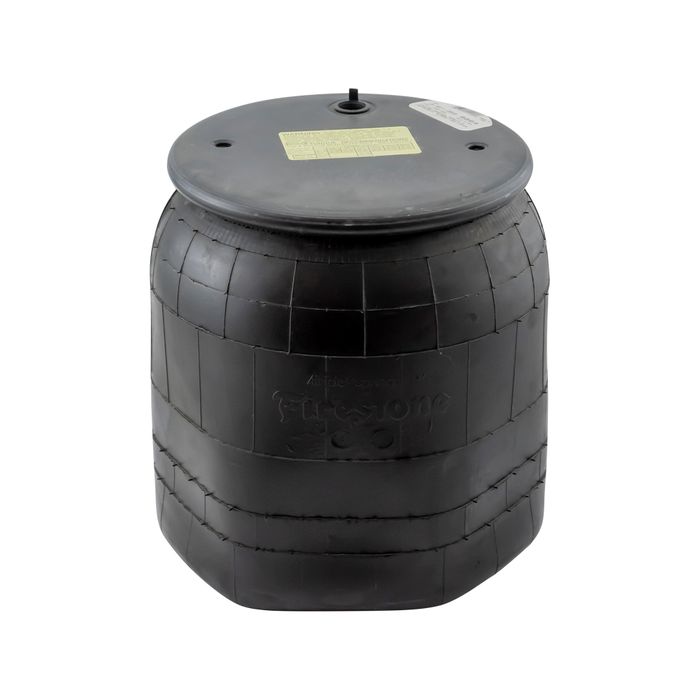

VKNTech Air Bag 1K8864

Stock Code:
730139
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$200.25 Excl. GST

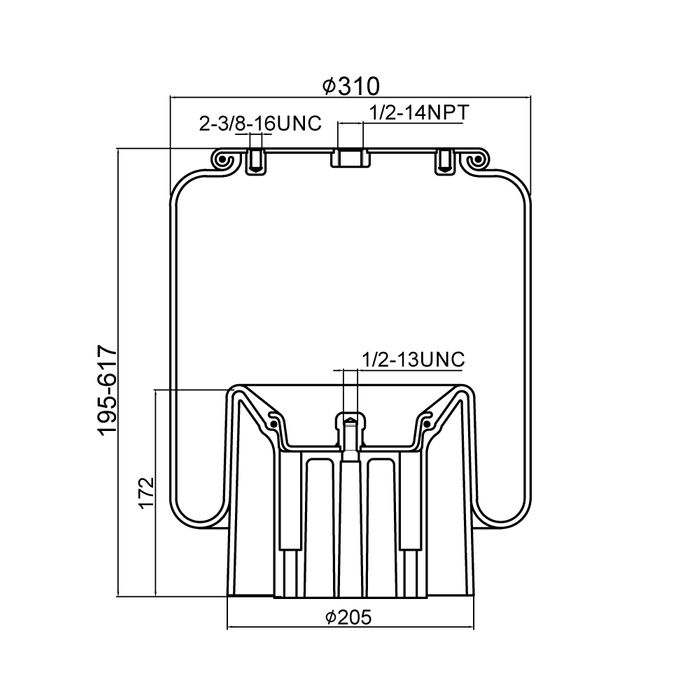

Complete Unit
Outer Diameter: 310mm
Height: 195 - 617mm (excl. studs)

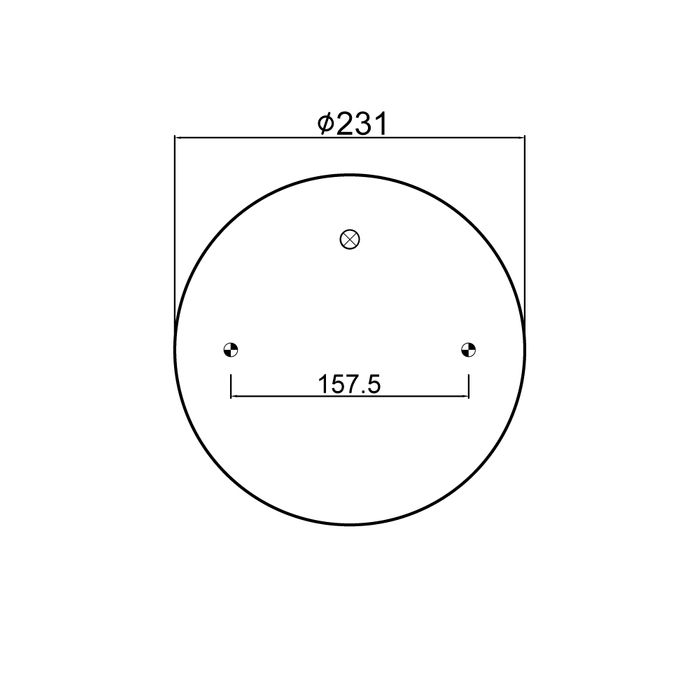

Top Plate
Outer Diameter: 231mm
Mounting: 1x air inlet hole (A), 2x threaded holes (B)
Spacing: 157.5mm diagonally (centres)

A. Air Inlet Hole
Thread: 1/2" 14NPT

B. Threaded Hole
Thread: 3/8" 16UNC

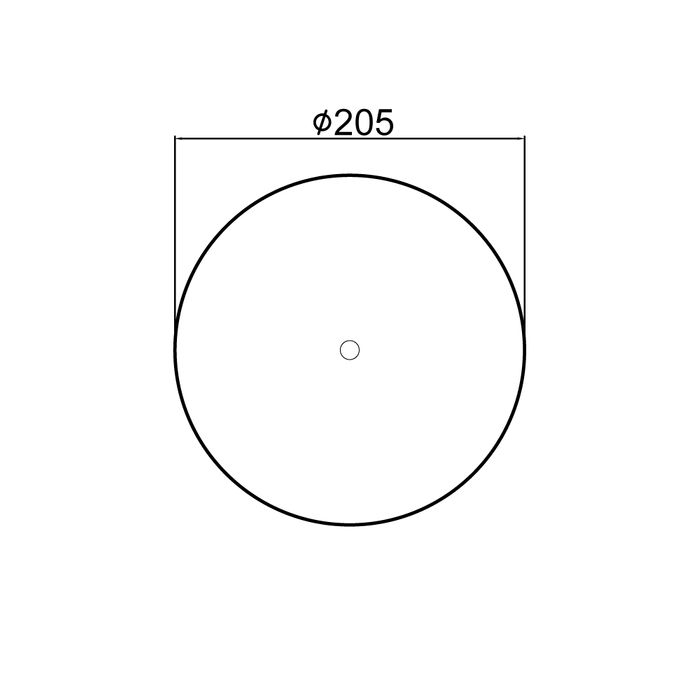

Base
Outer Diameter: 205mm
Height: 172mm
Mounting: 1x threaded hole (C)

C. Threaded Hole
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K8864
    1K15M-9
  • Peterbilt
    03-08716
  • Kenworth
    C81-1011
    C81-1013
  • Fleetpride
    AS8864
  • Triangle
    AS-8898
  • TRP
    AS88640
  • Automann
    1DK23L-8864

Reference Numbers

  • Firestone
    W01-358-8864
