VKNTech Air Bag 1K9541

Stock Code:
730475
Hamilton
Low Stock
Christchurch
Out of Stock
Price:
$306.65 Excl. GST

Complete Unit
Outer Diameter: 285mm
Height: 100 - 301mm (excl. studs)

Top Plate
Outer Diameter: 231mm
Mounting: 1x air inlet (A), 1 bracket

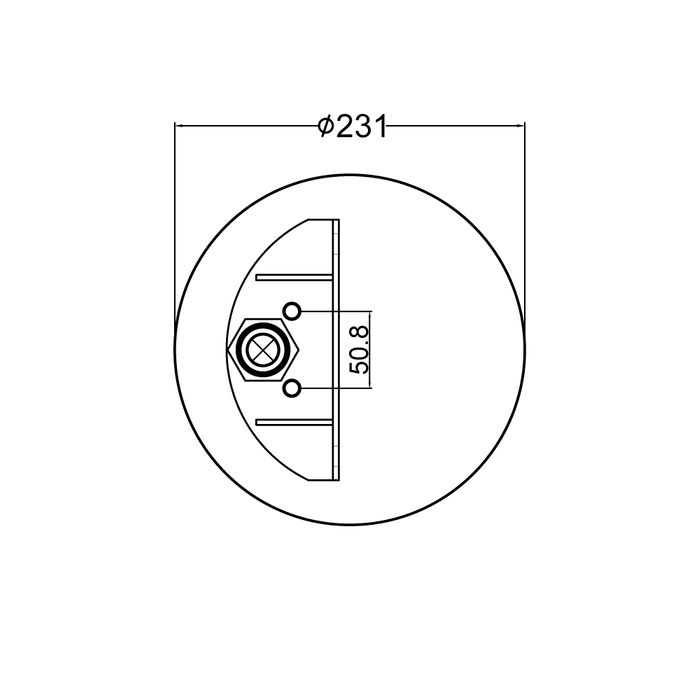

Spacing: See top plate diagram

A. Air Inlet
Thread: 15/16" 12UNF

Base
Outer Diameter: 209mm
Height: 71.5mm
Mounting: 1x stud (B)

B. Stud
Length: 68.5mm
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9541
    1K15LA-0
  • Fleetpride
    AS9541
  • Triangle
    AS-8861
  • TRP
    As95410
  • Automann
    1DK20H-9541
  • Kenworth
    C81-1005

Reference Numbers

  • Firestone
    W01-358-9541
