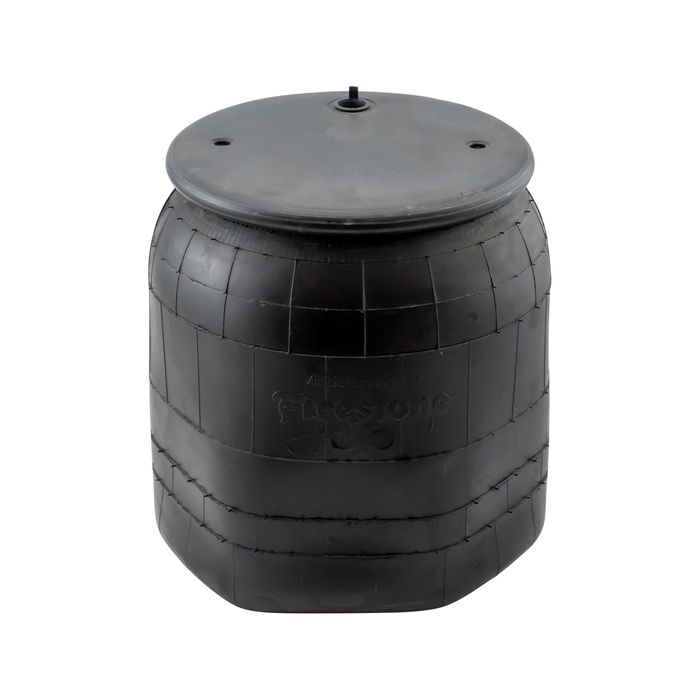

VKNTech Air Bag 1K9026

Stock Code:
730449
Hamilton
In Stock
Christchurch
Out of Stock
Price:
$200.25 Excl. GST

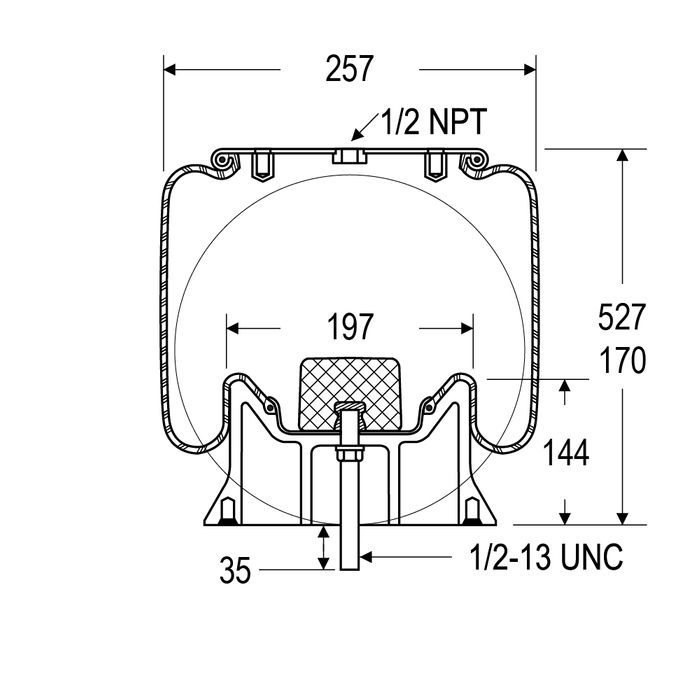

Complete Unit
Outer Diameter: 257mm
Height: 170 - 527mm (excl. studs)

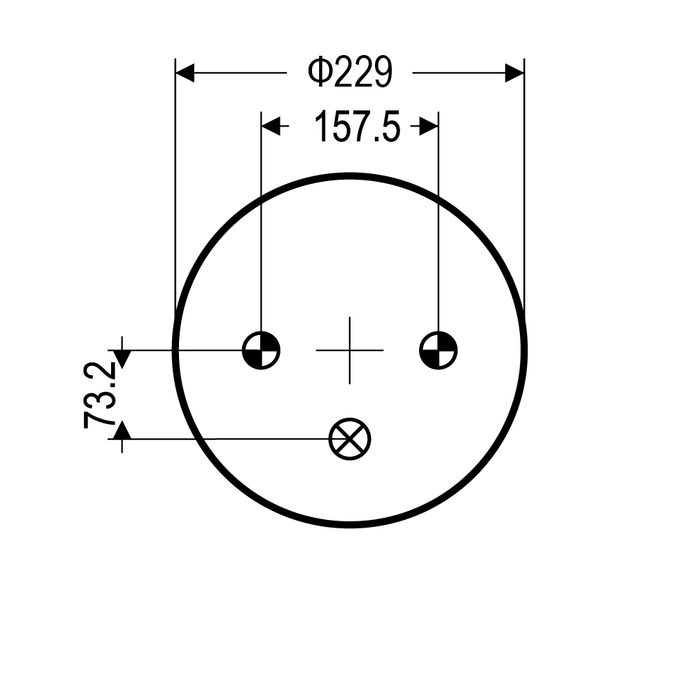

Top Plate
Outer Diameter: 229mm
Mounting: 1x air inlet hole (A), 2x threaded holes (B)
Spacing: see top plate diagram

A. Air Inlet Hole
Thread: 1/2" 14NPT

B. Threaded Hole
Thread: 3/8" 16UNC

Base
Outer Diameter: 205mm
Height: 144mm
Mounting: 1x stud (C)

C. Stud
Length: 35mm
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K9026
    1K15M-6
  • Peterbilt
    03-06213
    03-07111

Reference Numbers

  • Contitech
    9 10-16 P 393
  • Firestone
    W01-358-9096
    1T15M-6
  • Goodyear
    1R12-907
