VKNTech Air Bag 1K8050

(0 reviews)
Stock Code:
730459
Hamilton
In Stock
Christchurch
Out of Stock
RRP:
$175.50 Excl. GST
Price:
$145.99 Excl. GST

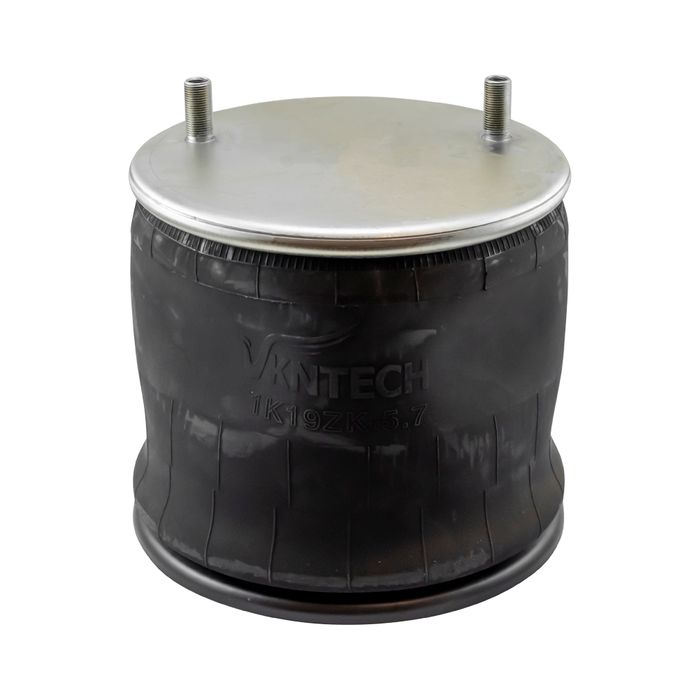

Complete Unit
Outer Diameter: 360mm
Height: 254mm (excl. studs)

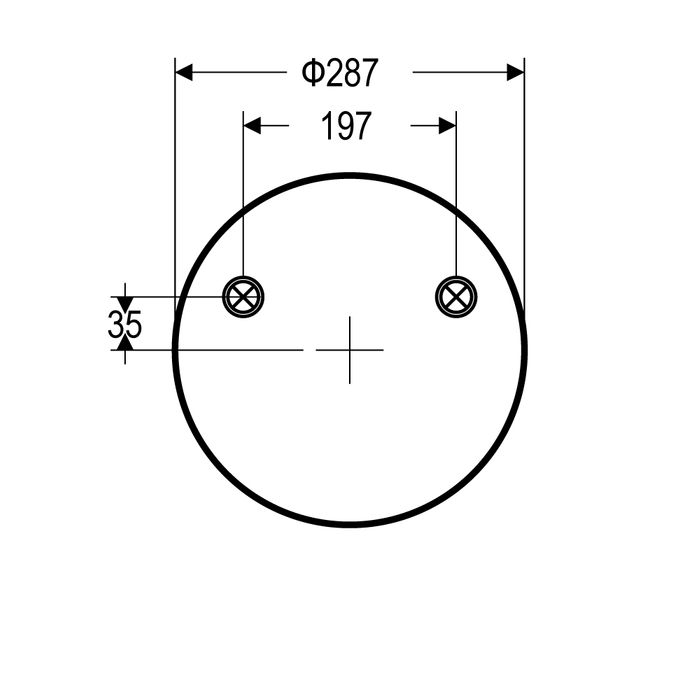

Top Plate
Outer Diameter: 287mm
Mounting: 2x air inlet studs (A)
Spacing: 197mm (centres), offset 35mm

A. Air Inlet Stud
Length: 40mm
External Thread: 3/4" 16UNF
Internal Thread: 1/4" 18NPT

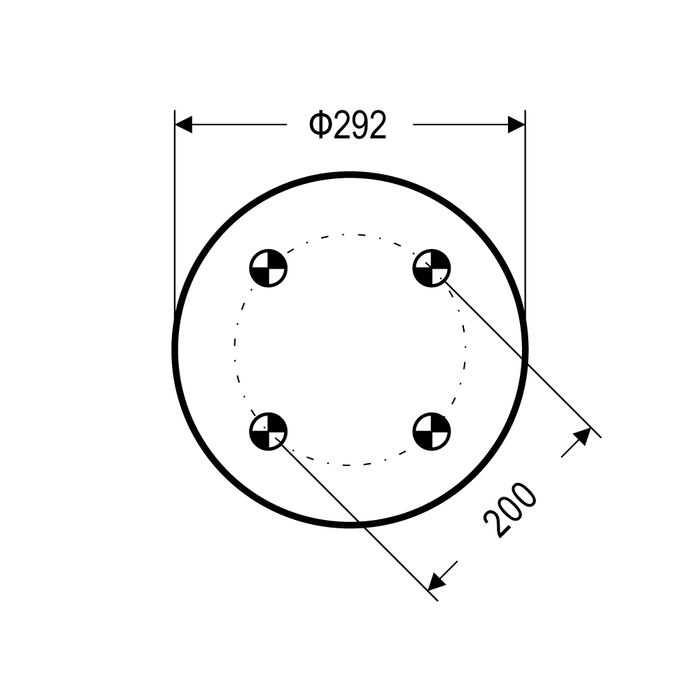

Base
Outer Diameter: 292mm
Height: 103mm
Mounting: 4x threaded holes (B)
Spacing:  200mm diagonally (centres)

B. Threaded Hole
Thread: 1/2" 13UNC



The below part numbers are an indication of similarity only.
please use supplied measurements to verify suitability.

Manufacturer Numbers

  • VKN Tech
    1K8050
    1K19ZK-5.7
  • Dayton
    352-8050
  • Hendrickson
    B-12514-013
    S4771
    T-15-140
    T-15-150
    T-15-324
    T-15-376
    T-17-174
    T-17-284
    HT-300T(all)
  • International/Navistar
    1685174C1
  • Load Guard
    SC2052
  • Tuthill-Reyco
    23631-01
  • Watson & Chalin
    AS-0039
    TA-300-15
    TA-300-16
    TA-300-17
    TA-300-22
    TA-300-23B
    TA-5000-DB-24
    TA-5000-DB-30
    TA-5000-F-24
    TA-525DB
    TA-525FS

Reference Numbers

  • Contitech
    1110.5E-16A320
  • Firestone
    W01-358-8050
    1T19ZK-5.7
  • Goodyear
    1R14-039
    1R14-055
    1R14-083
